Ricoh MP C2504 - Page 177

To Next Page

To Previous Page

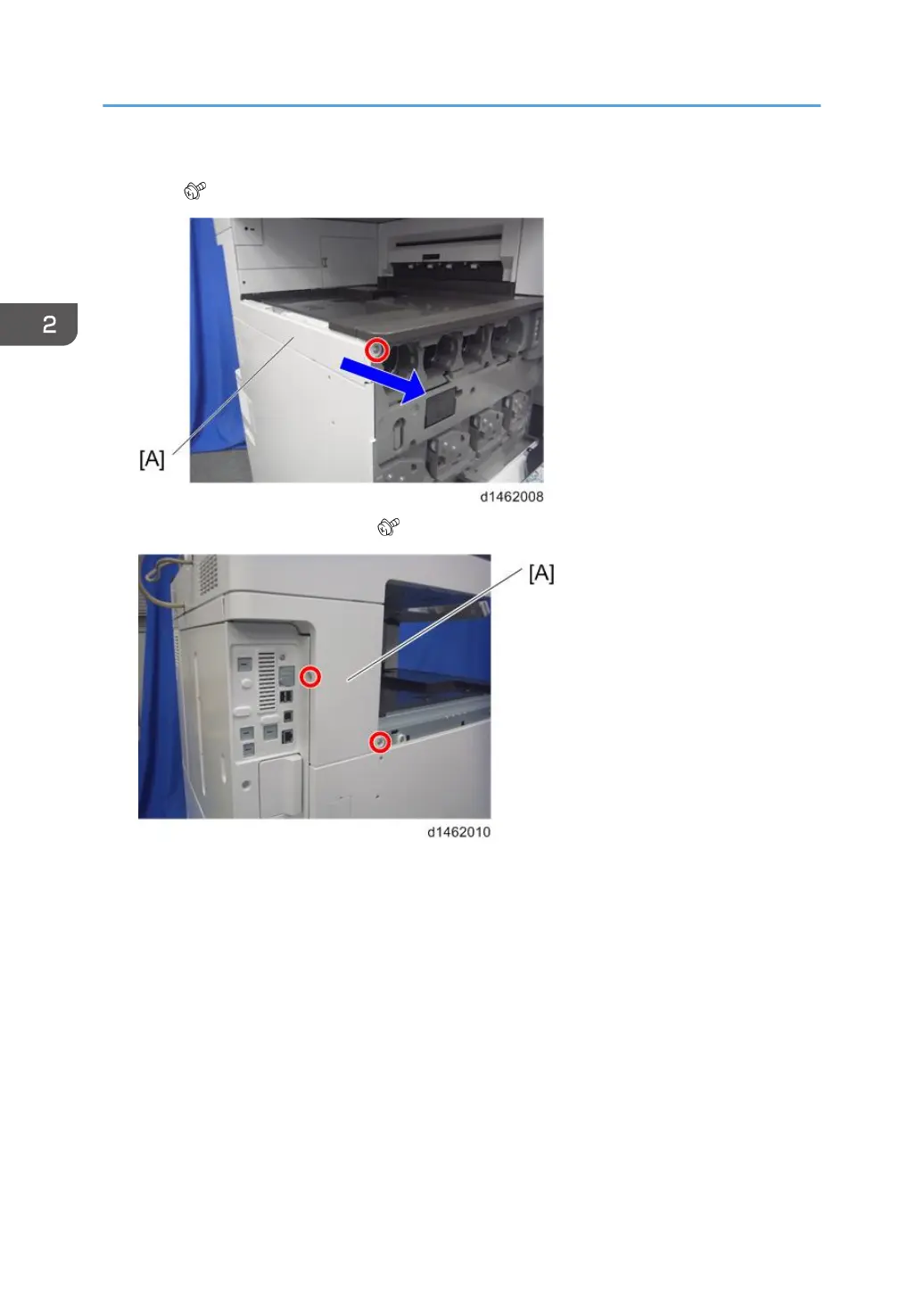

7. Open the front cover, and then remove the upper left cover [A] by pulling it towards the

front ( ×1).

8. Remove the left rear cover [A] ( ×2).

2. Installation

168
