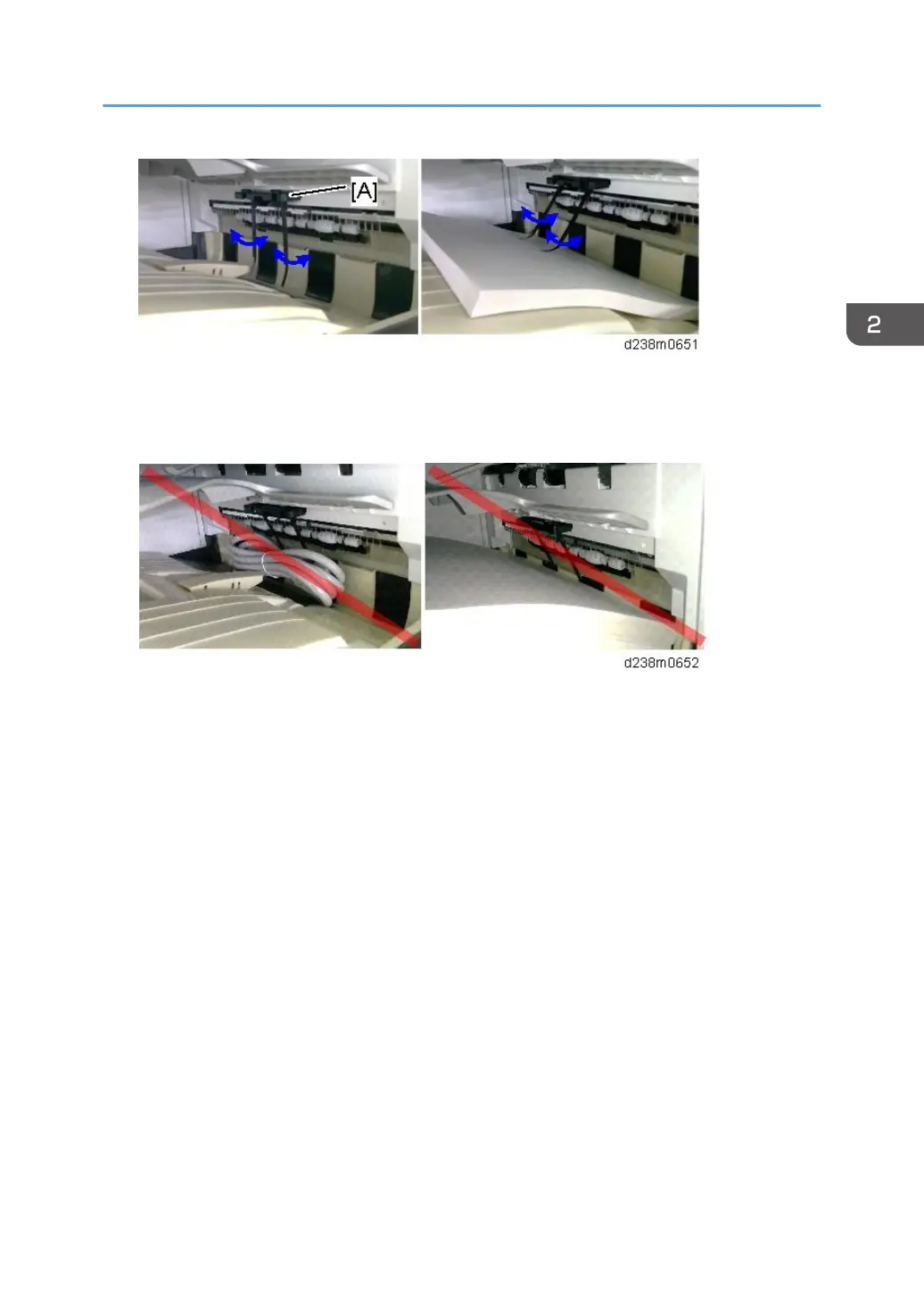

Paper will get jammed in the following cases.

• The paper exit feeler does not function due to obstacles (such as cables).

• The paper exit feeler does not function when the paper is pulled out and pushed back again.

1 Bin Tray BN3110 (D3CQ)

173
