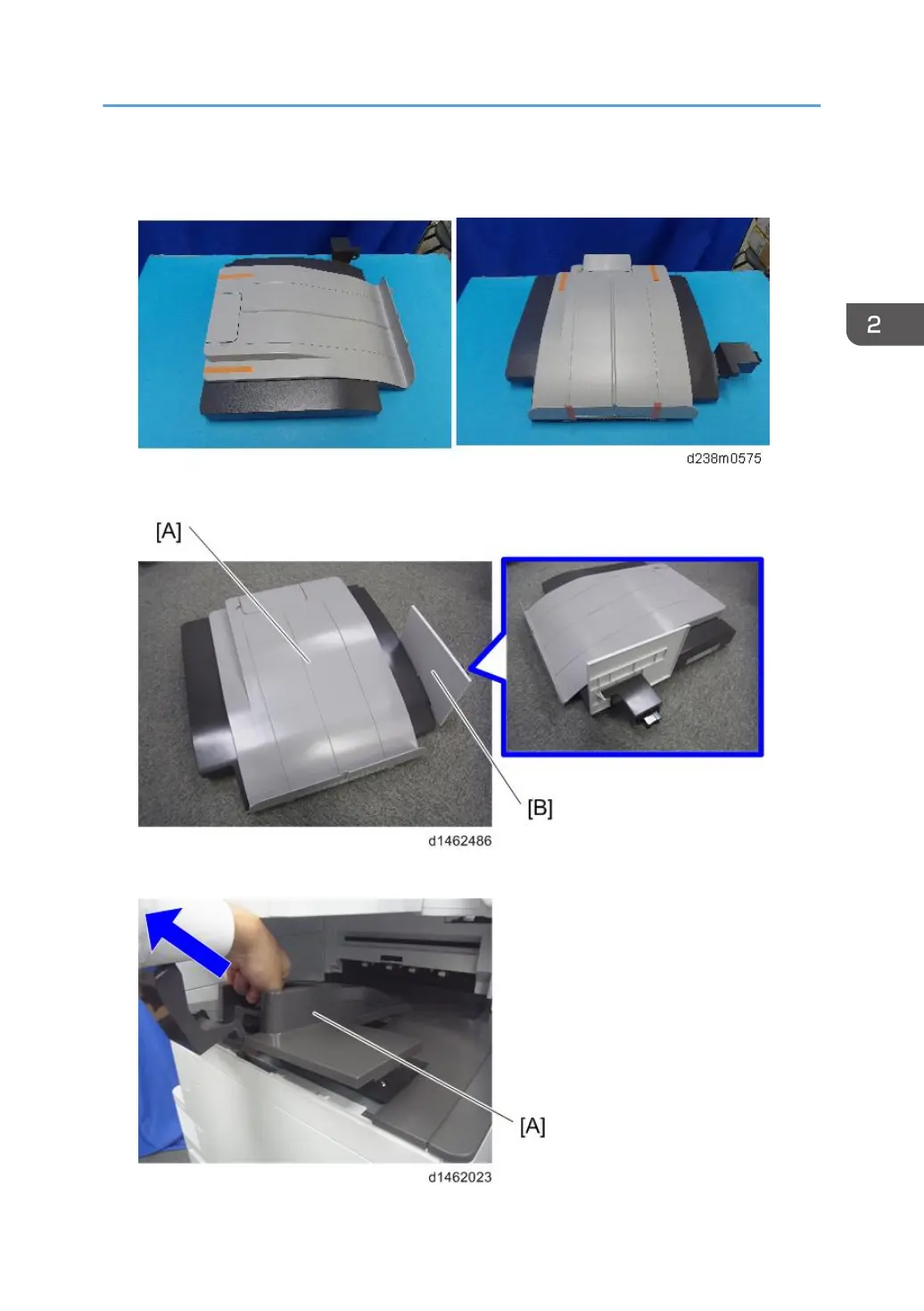

1. Remove the orange tapes, shipping retainers, and provided accessories (fixing screws,

etc.).

2. Attach the tray cover [B] to the shift tray [A].

3. Remove the paper exit tray [A].

Internal Shift Tray SH3070 (D691)

175
