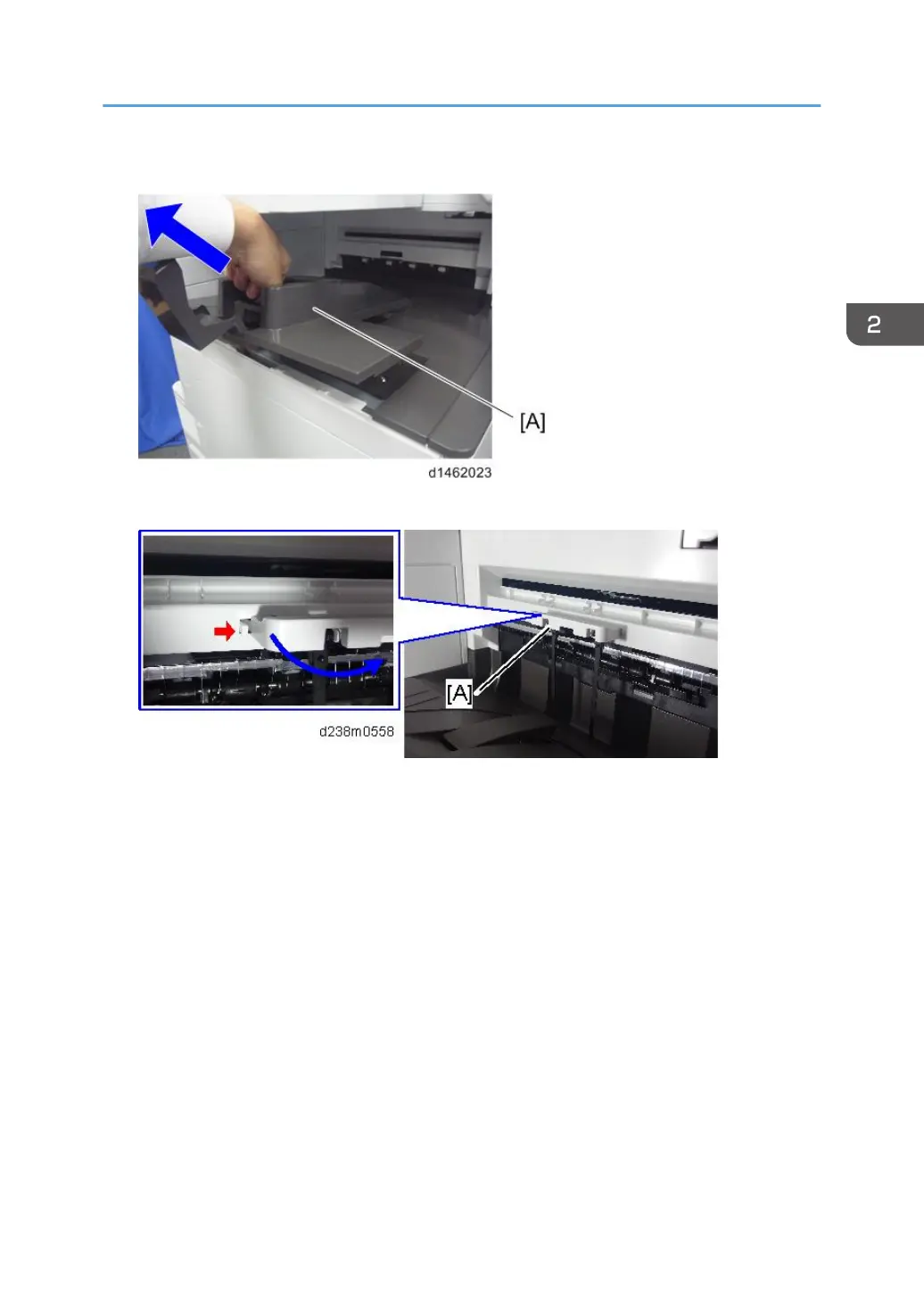

2. Remove the paper exit tray [A].
3. Remove the paper exit feeler [A].
4. Remove the driven roller [B] at the machine’s exit tray and attach the supplied driven
roller [A].
• Insert a flathead screwdriver into the depression in the center, and then, lifting the driven
roller, unlock the part indicated by the red arrow.
• When attaching the driven roller, push its center all the way in until it clicks.
Side Tray Type M3 (D725)
181
