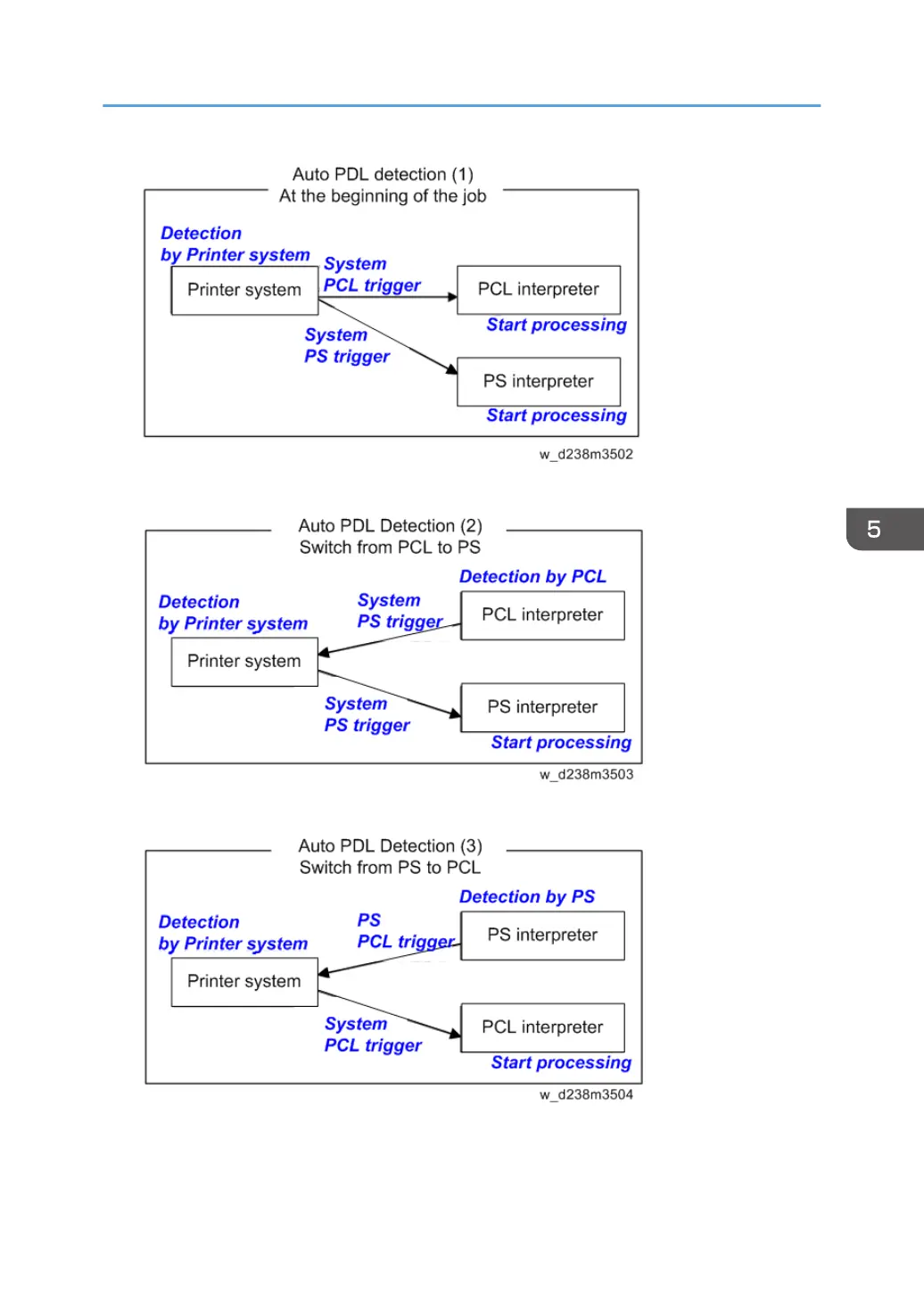

2. PDL switching from PCL5 to PS: performed by the PCL interpreter and the printer system

3. PDL switching from PS to PCL5: performed by the PS interpreter and the printer system

Printing Features

677
