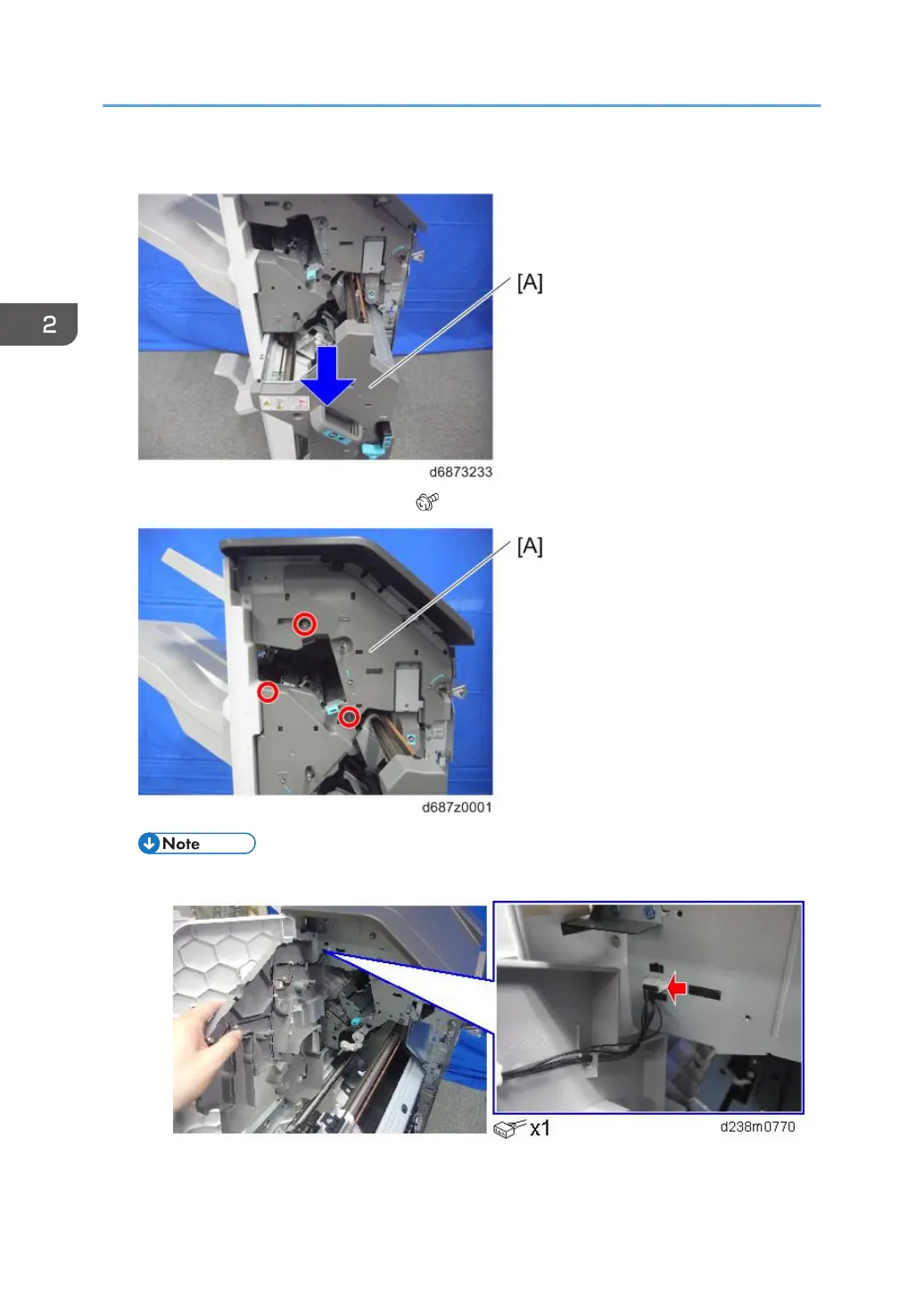

6. Pull the saddle stitch unit [A] or stapling unit.

7. Remove the finisher inner cover [A] ( ×3)

• Remove the connector at the back of the inner cover.
