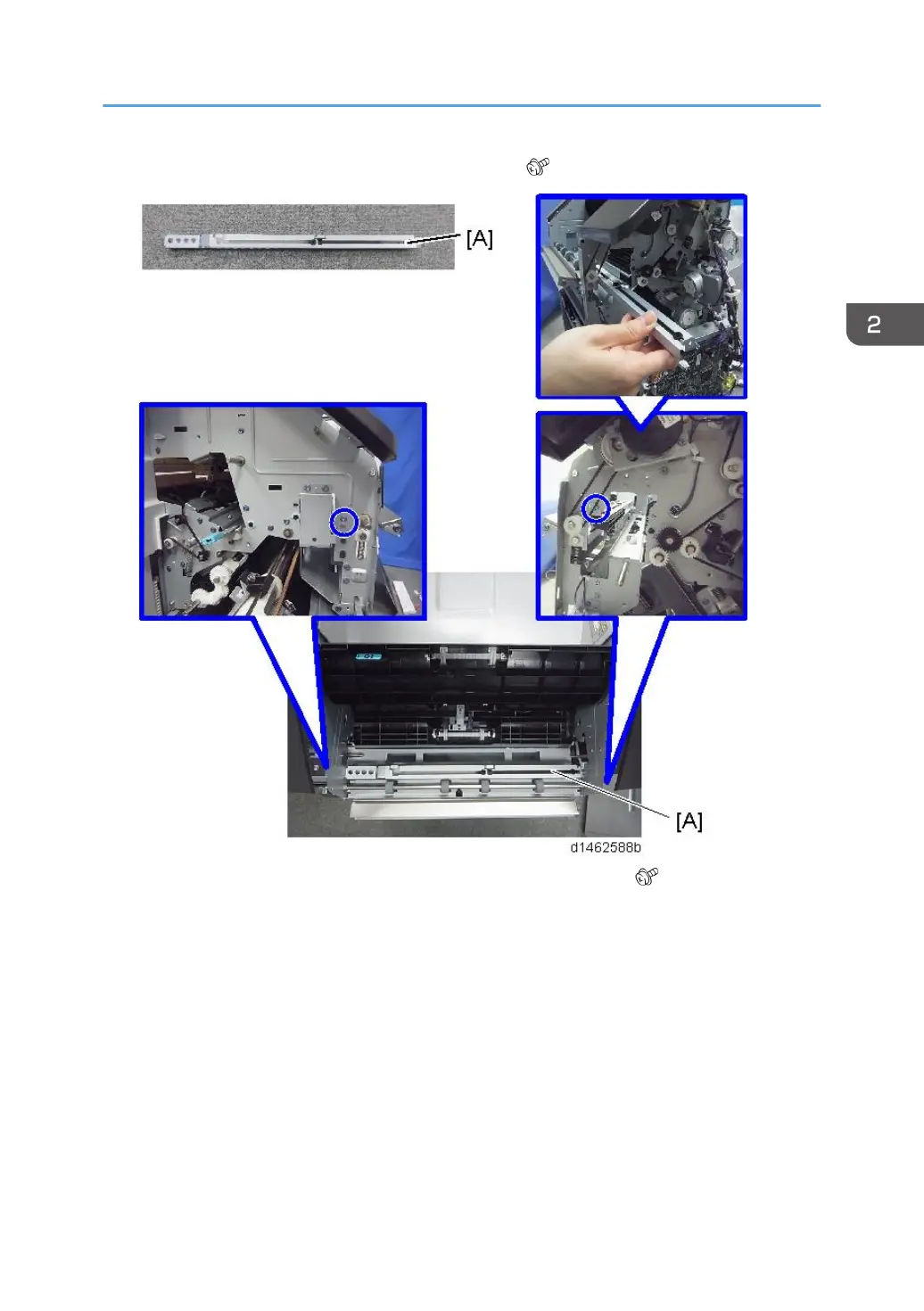

12. Insert and attach the guide plate [A] from the rear ( ×2).

13. Insert and attach the side-to-side detection unit [A] from the rear ( ×2).

Front: The two shafts of the unit are passed through bearings in the finisher.

Punch Unit PU3050

211
