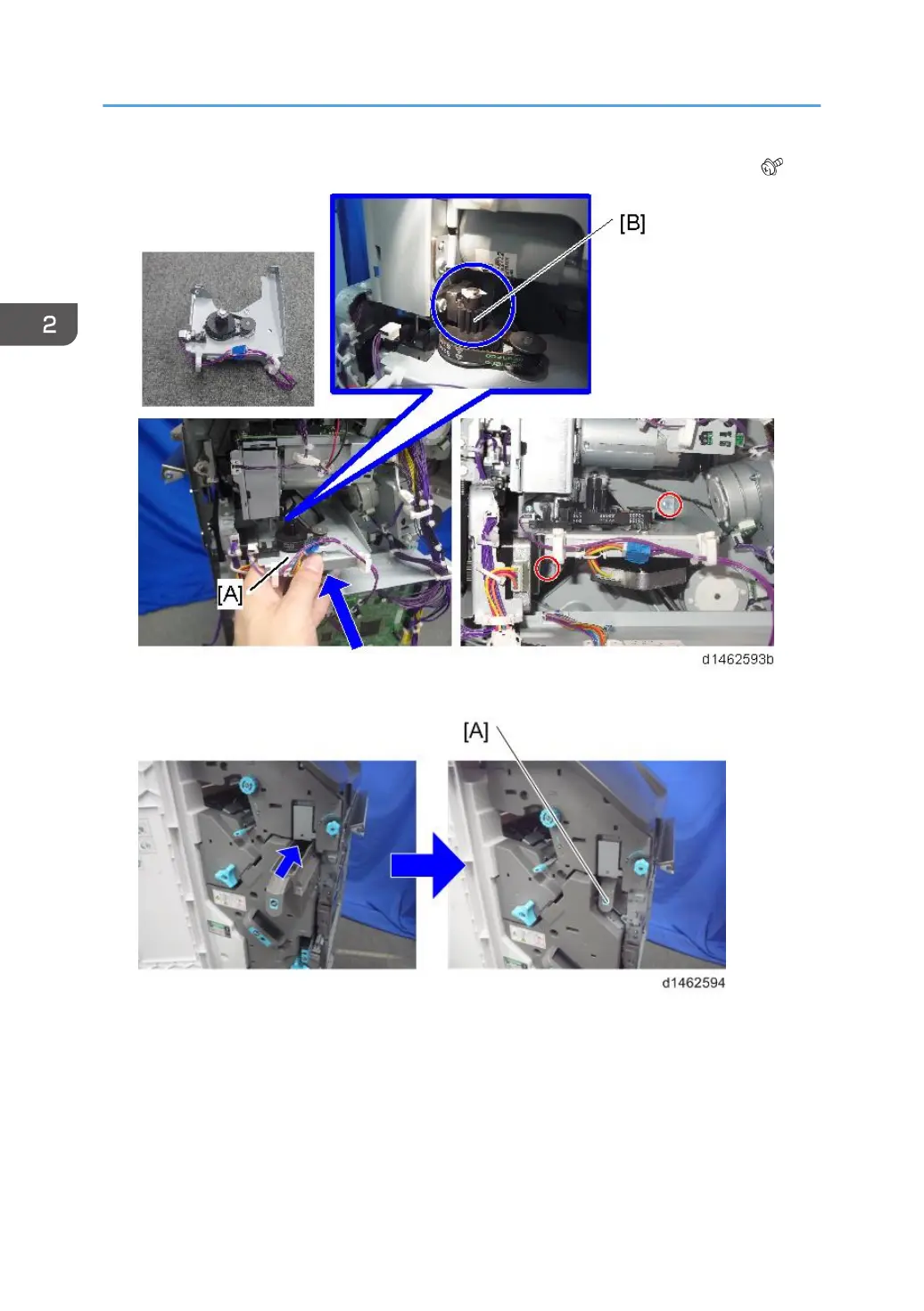

16. Attach the punch unit movement motor unit [A] so that the gear [B] meshes firmly ( ×2).

17. Insert the hopper [A].

2. Installation

214
