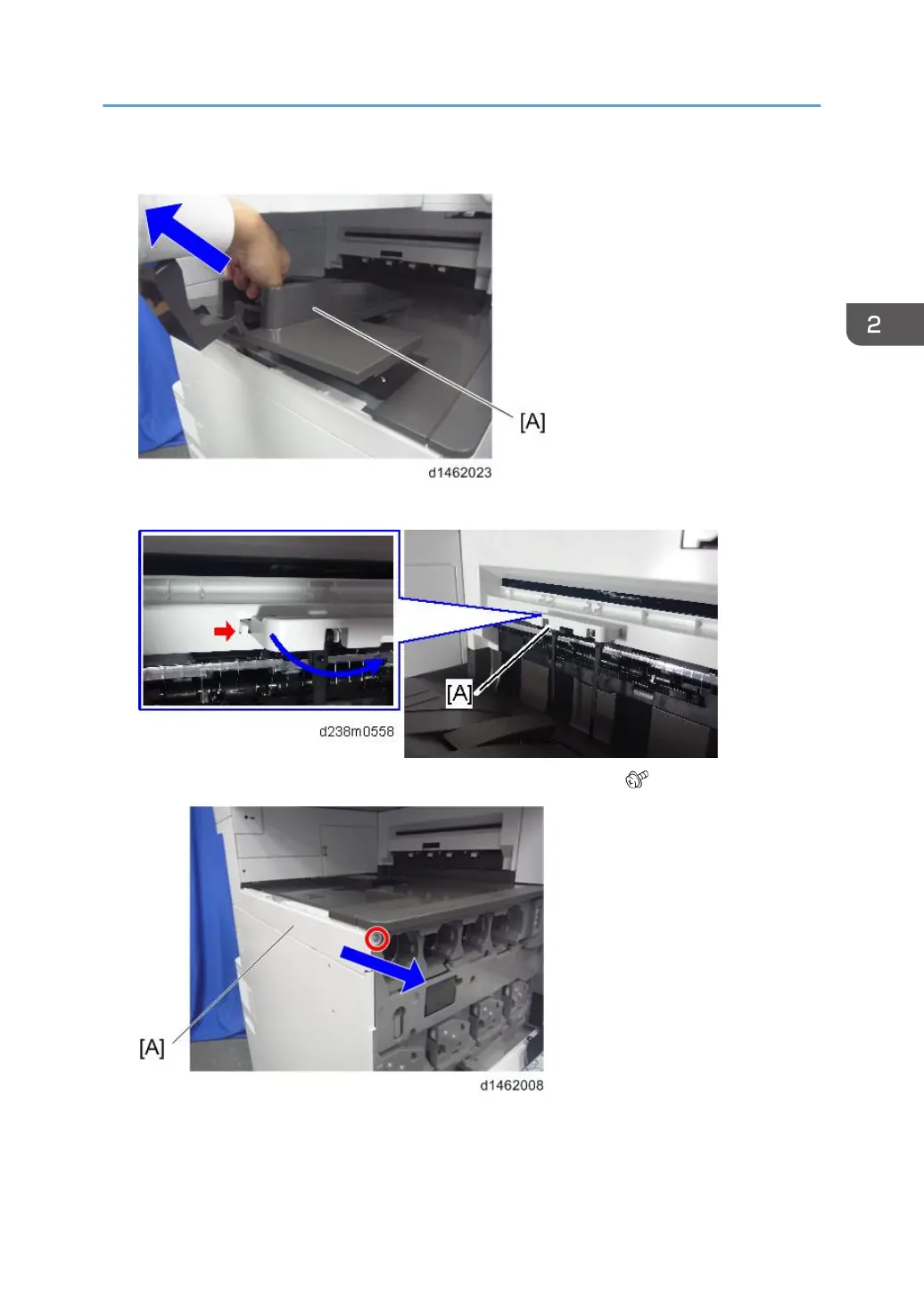

3. Remove the paper exit tray [A].

4. Remove the paper exit feeler [A].

5. Open the front cover, and then remove the upper left cover [A] ( ×1).

Internal Finisher SR3130 (D690)

221
