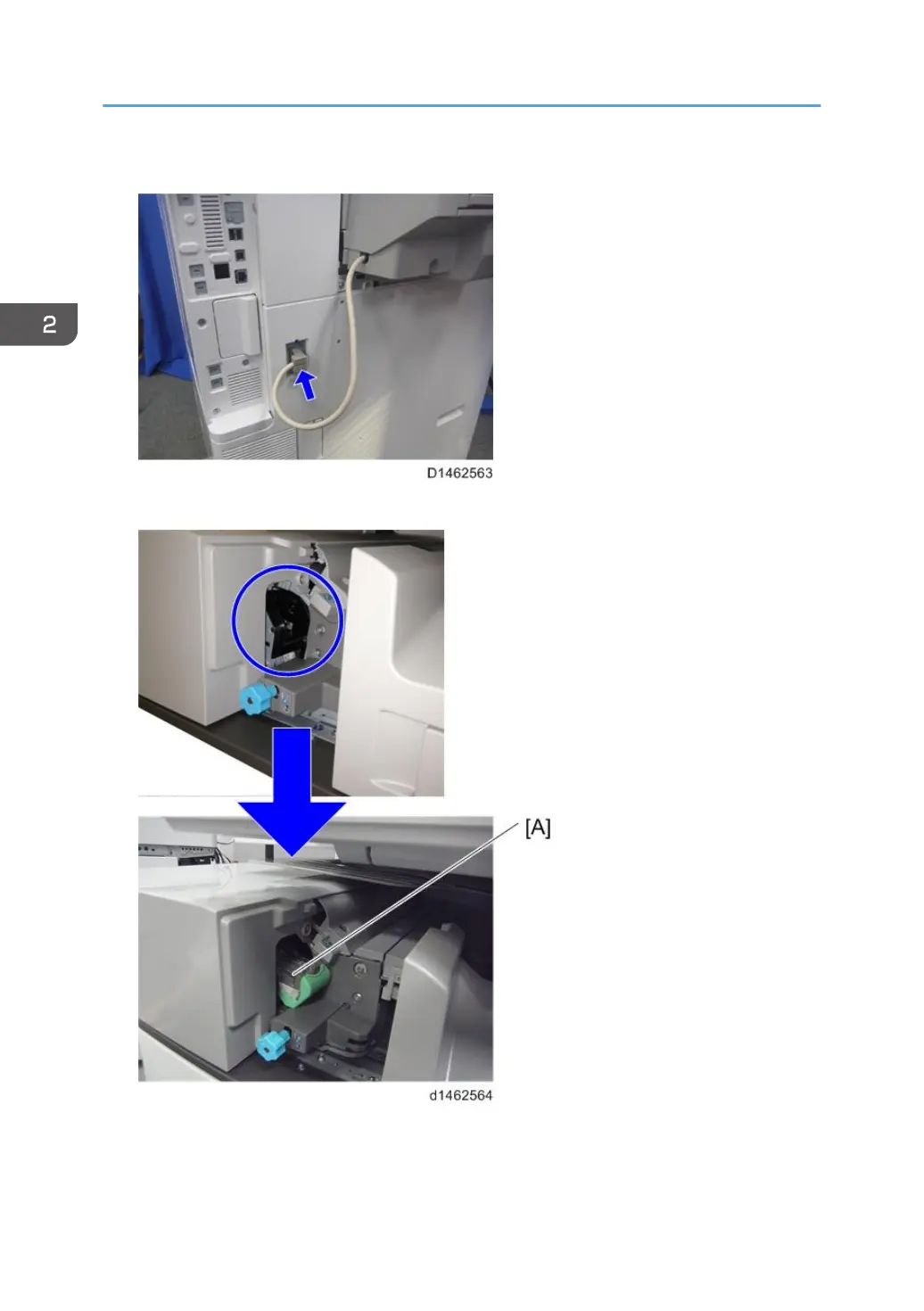

16. Remove the connector cover, then connect the interface cable to the machine.

17. Move the stapler unit forward, then set the stapler [A].

18. Turn ON the main power.

19. Check that the finisher can be selected at the operation panel, and check the finisher and

punch operation.
