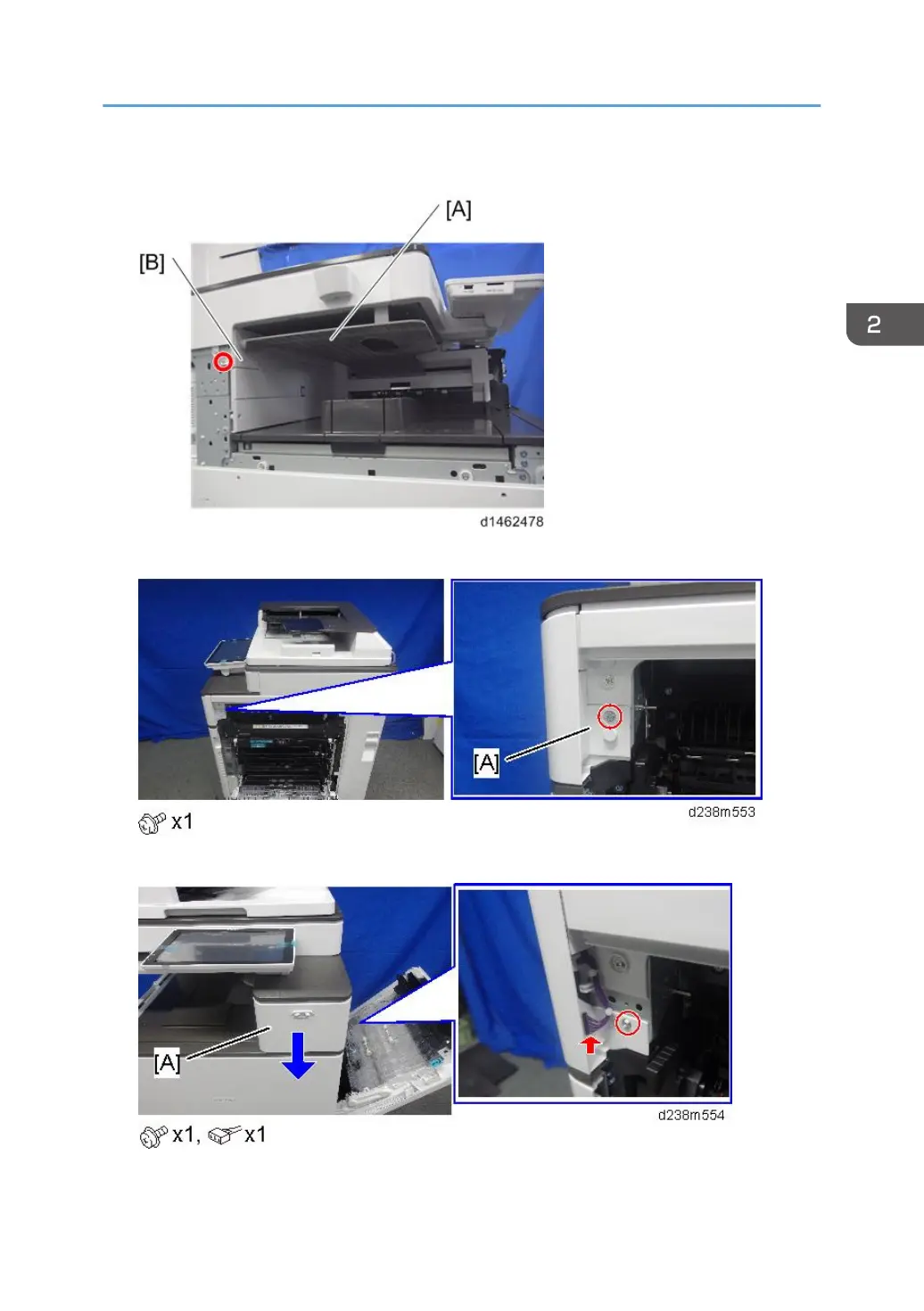

12. Remove the inverter tray [A] and tray support plate [B].

13. Open the right door, and then remove the small cover [A].

14. Remove the screw and connector, and then remove the front upper cover [A].
