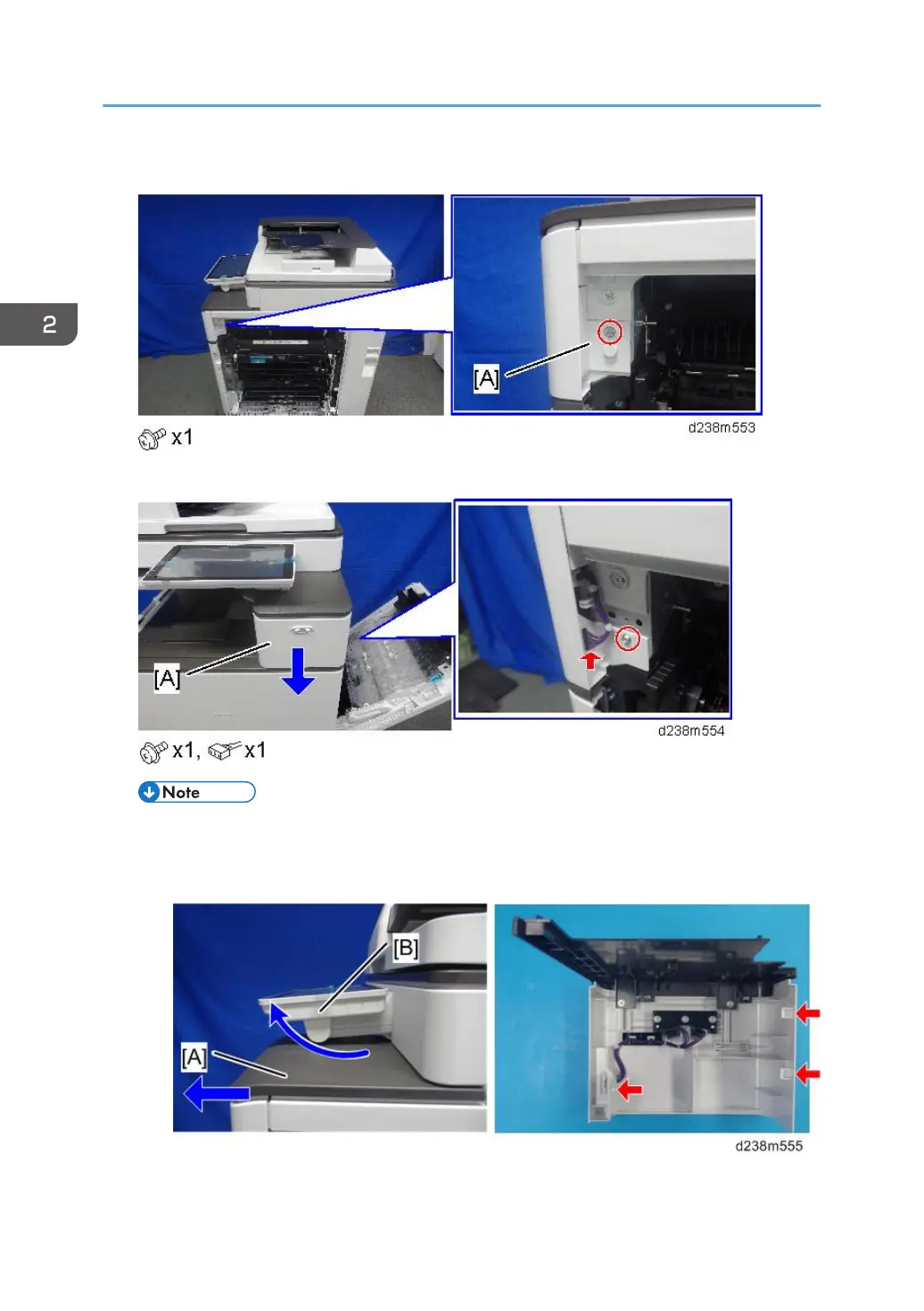

1. Open the right door, and then remove the small cover [A].
2. Remove the screw and connector, and then remove the front upper cover [A].
• Remember that there is a tab at the positions of the red arrows.
• Rotate the operation panel [B] upward to a horizontal position, and then detach the front
upper cover [A].
2. Installation
270
