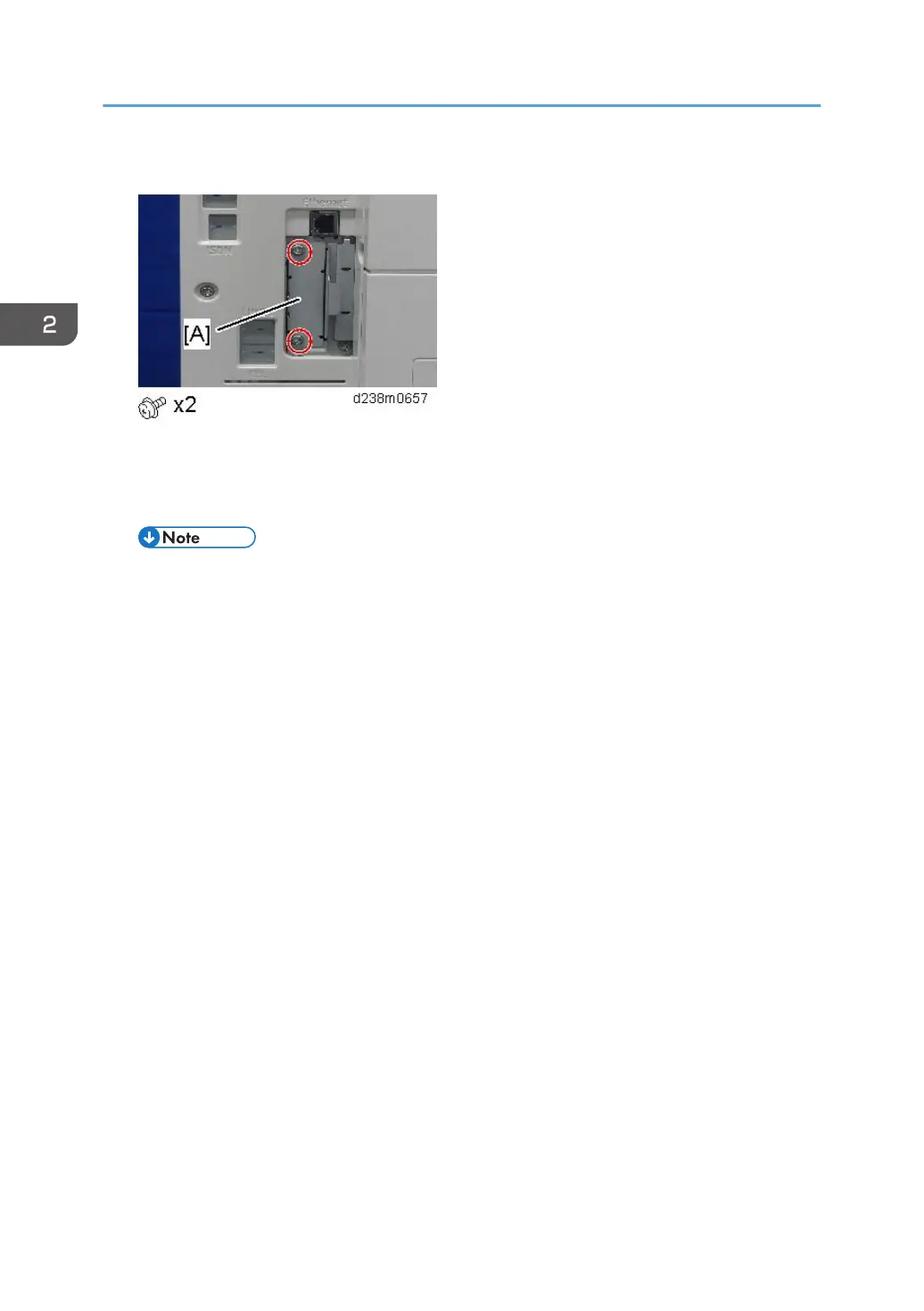

1. Remove the slot cover [A].

2. Insert the Extended USB Board into the I/F slot.

3. Turn ON the main power.

4. Check that the system settings list is output, and that the board is recognized correctly.

• The customer should keep the slot cover which were removed.
