Ricoh MP C2504 - Page 312

To Next Page

To Previous Page

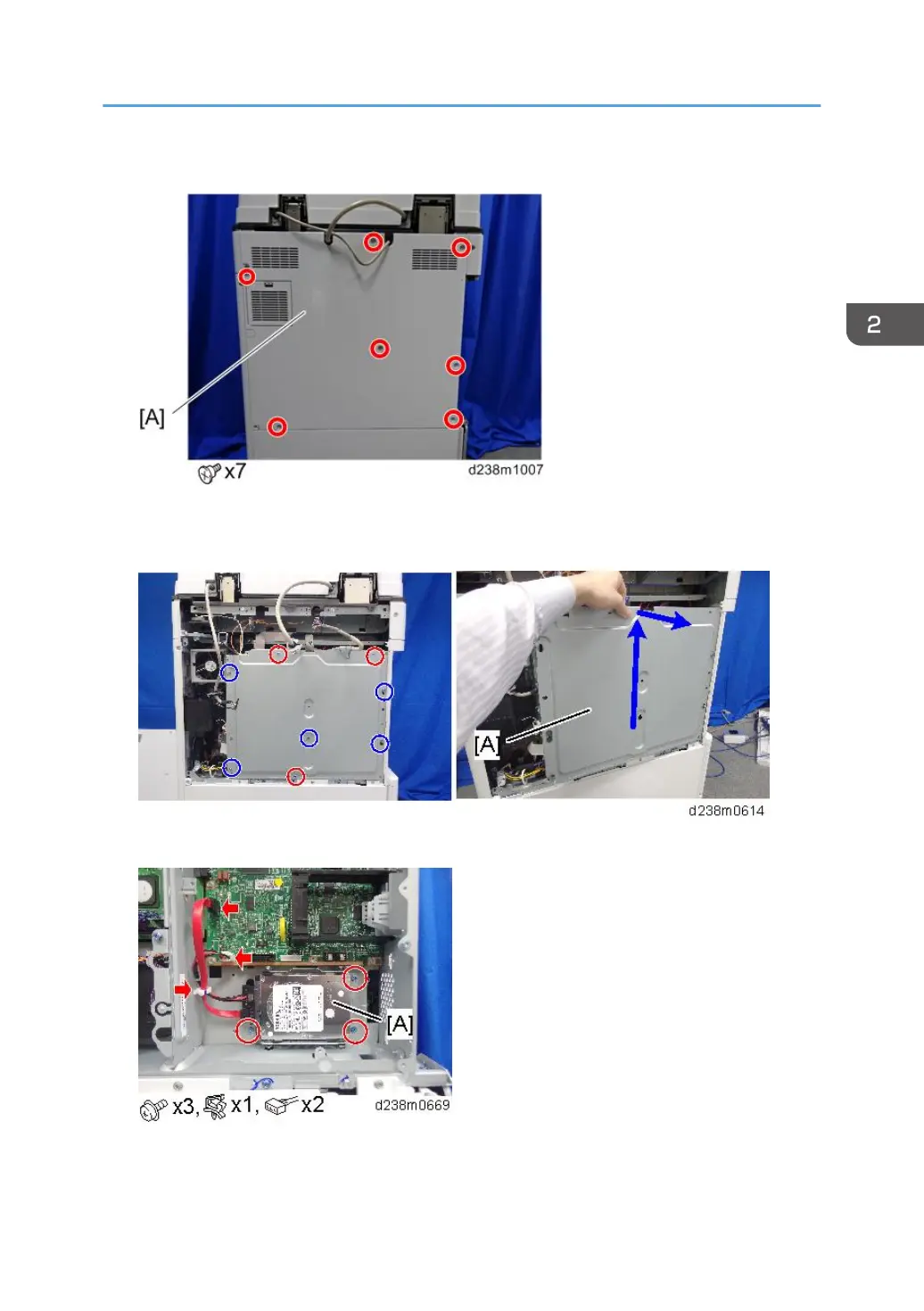

1. Remove the rear cover [A].

2. Remove the controller box cover [A].

Red Circle: Remove / Blue Circle: Loosen

3. Remove the standard HDD [A] installed on the machine.

Enhanced Security HDD Option Type M12 (D3A6-02)
