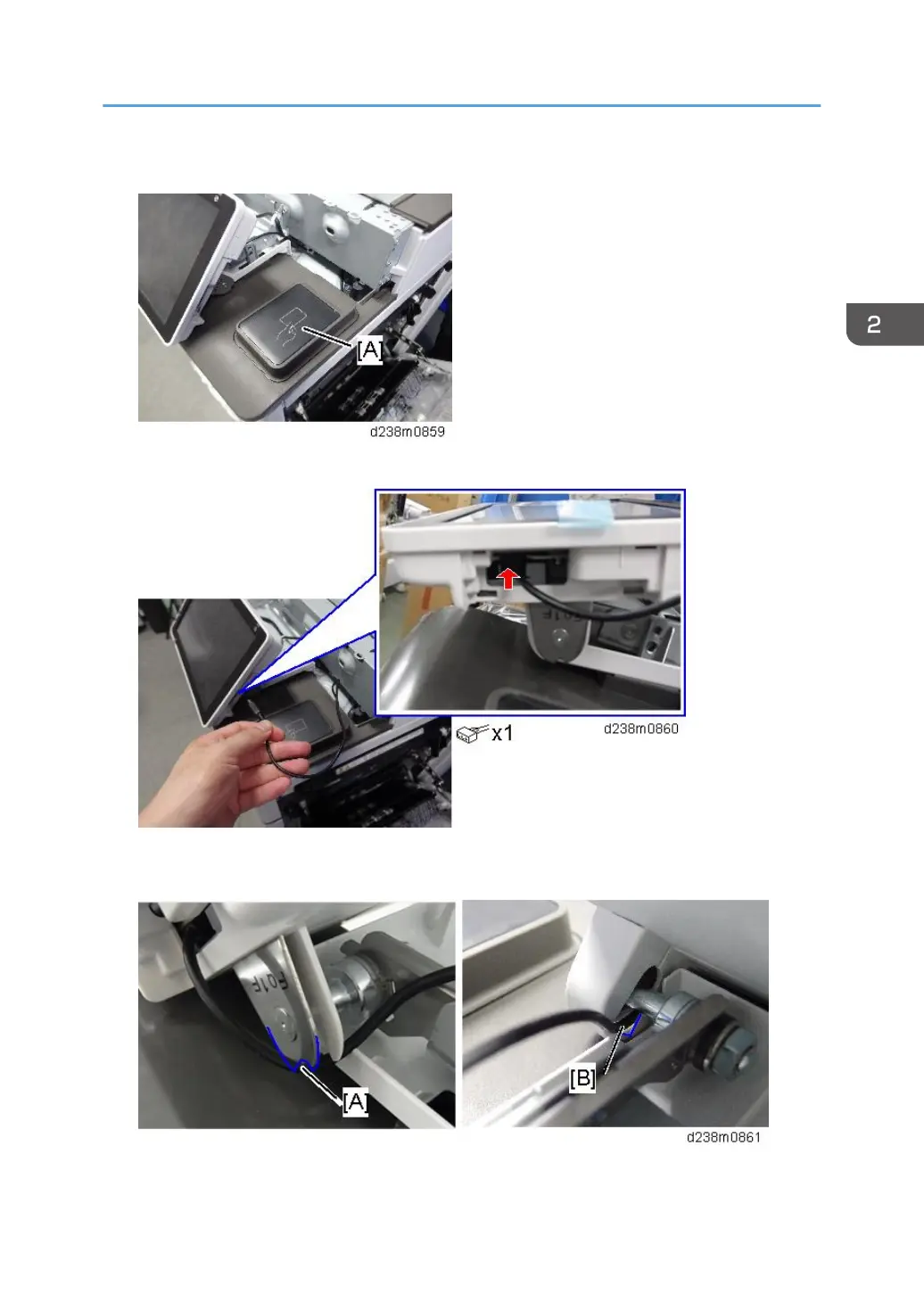

13. Attach the reader cover [A].

14. Connect the USB cable to the machine’s operation panel connector.

15. Thread the USB cable through the U-shaped groove [A] at the hinge of the operation

panel and notch [B] on the cover under the cover.

NFC Card Reader Type M19 (D3BS-21)

329
