ARDF DF3090

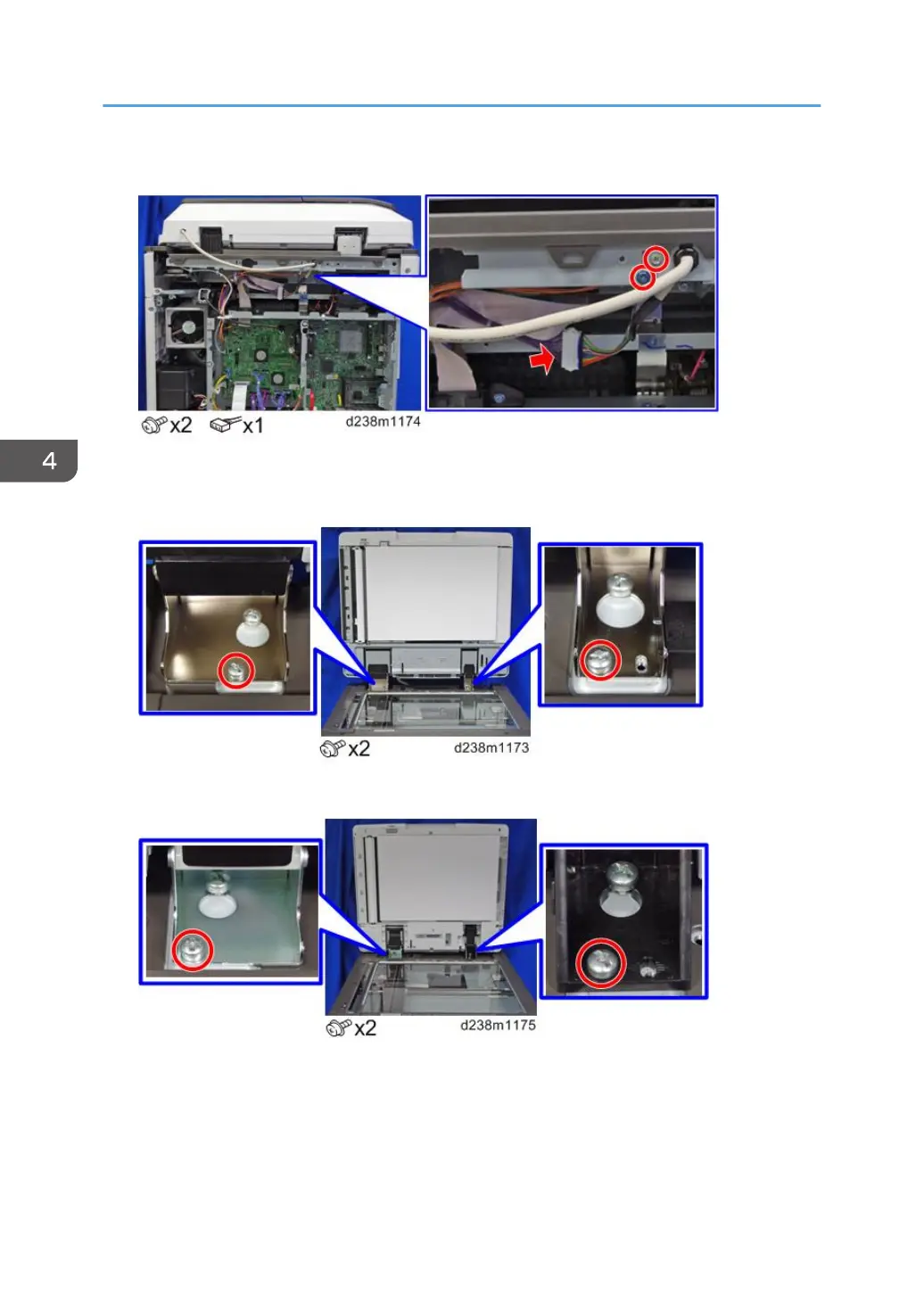

3. Screws on the ADF base.

SPDF DF3100

ARDF DF3090

4. Slowly and carefully (the ADF is heavy) lift the ADF [A] off the machine.
