7. Belt [A]

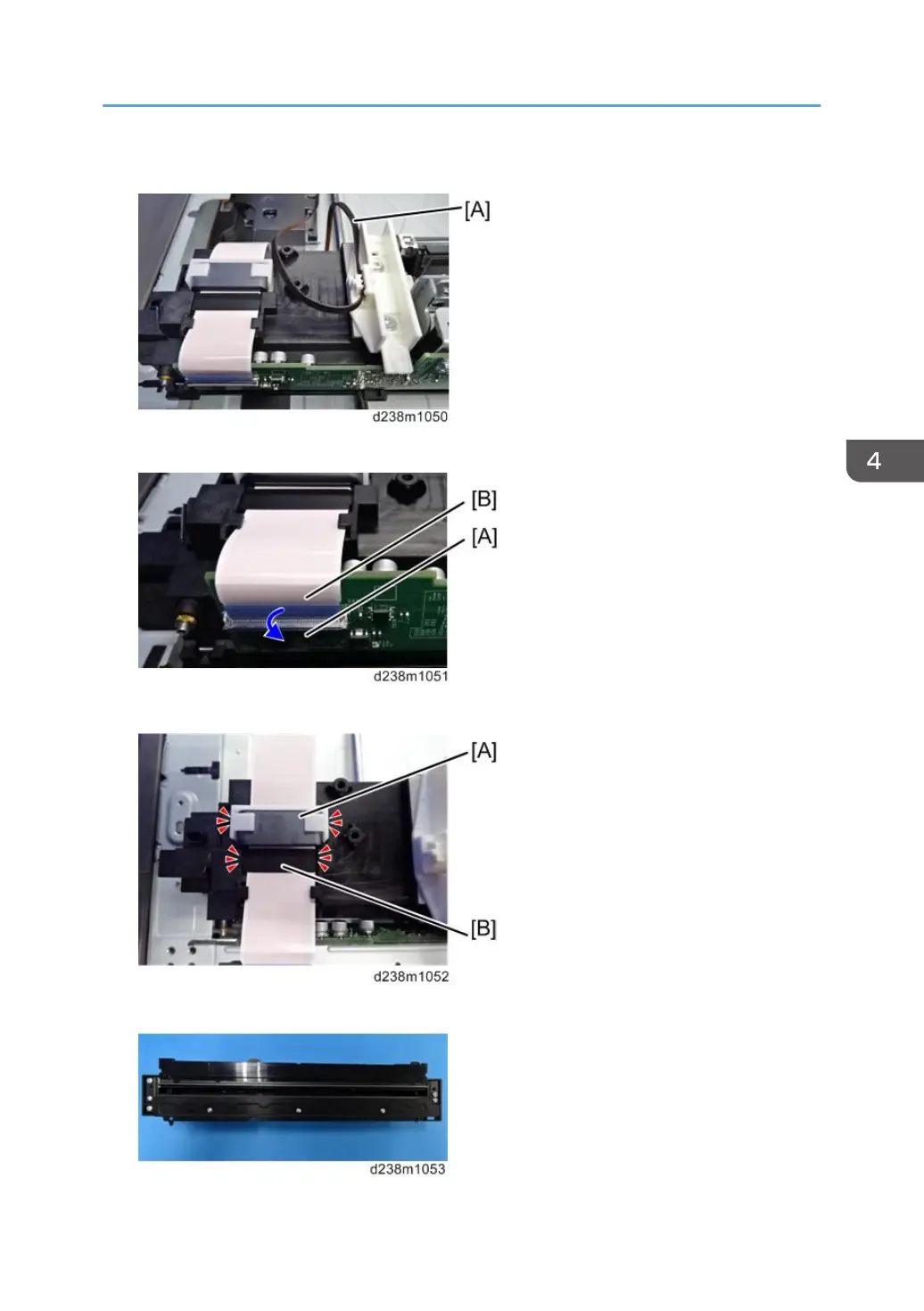

8. Lower the lock lever [A] and disconnect the FFC [B].

9. Ferrite core [A], Mylar sheet [B] (Hook x 4)

10. Scanner carriage

Scanner Unit

439

Main Page
