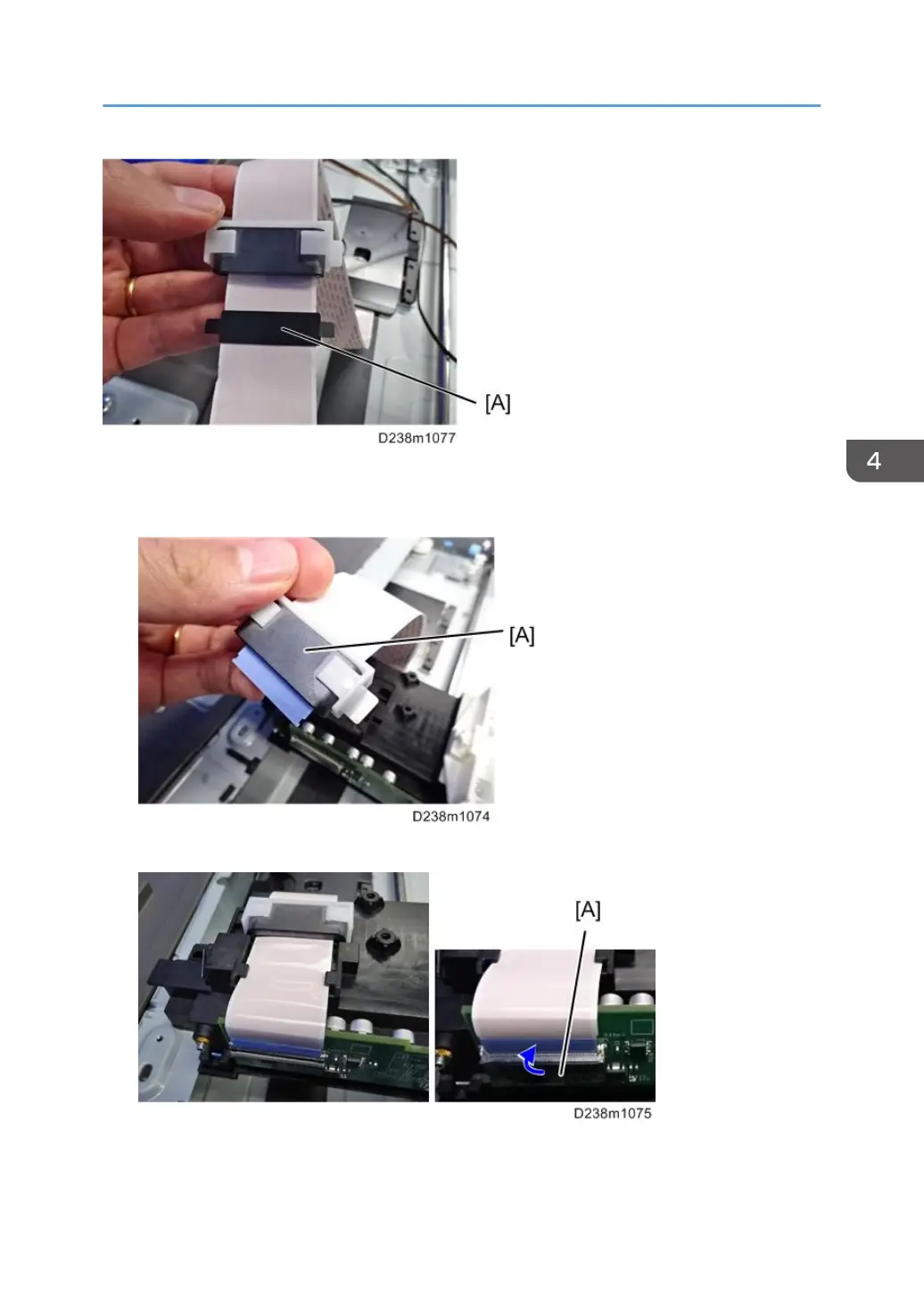

When attaching the Mylar, follow the steps below.

1. Feed the FFC through the ferrite core [A].

2. Connect the FFC to the scanner carriage’s connector, and then lift the lever [A] to lock it.

Scanner Unit

449
