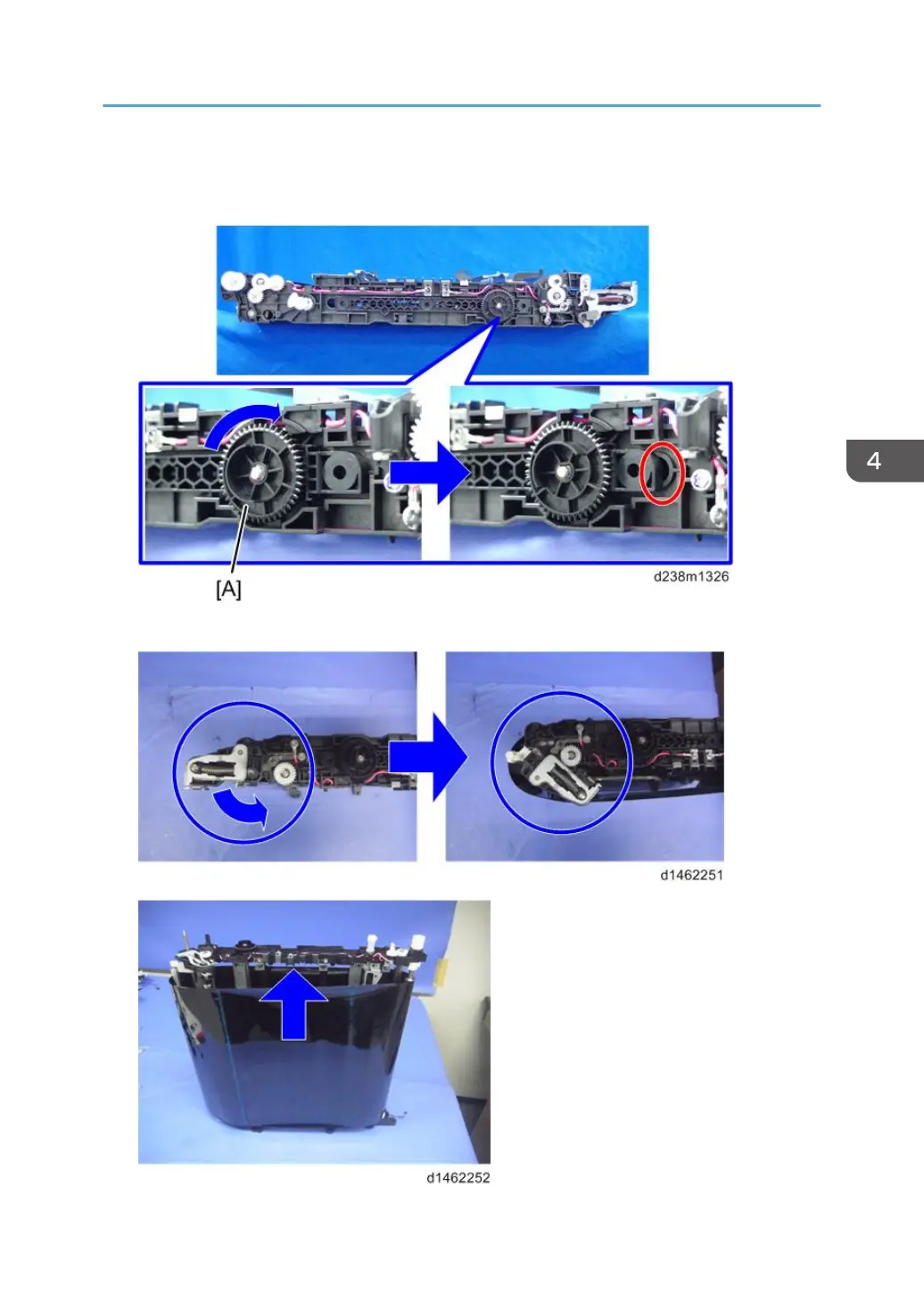

7. Rotate the gear [A] to change to the OPEN position.

The part in the red circle opens.

8. Release the tension, and remove the belt.

Image Transfer Unit

485
