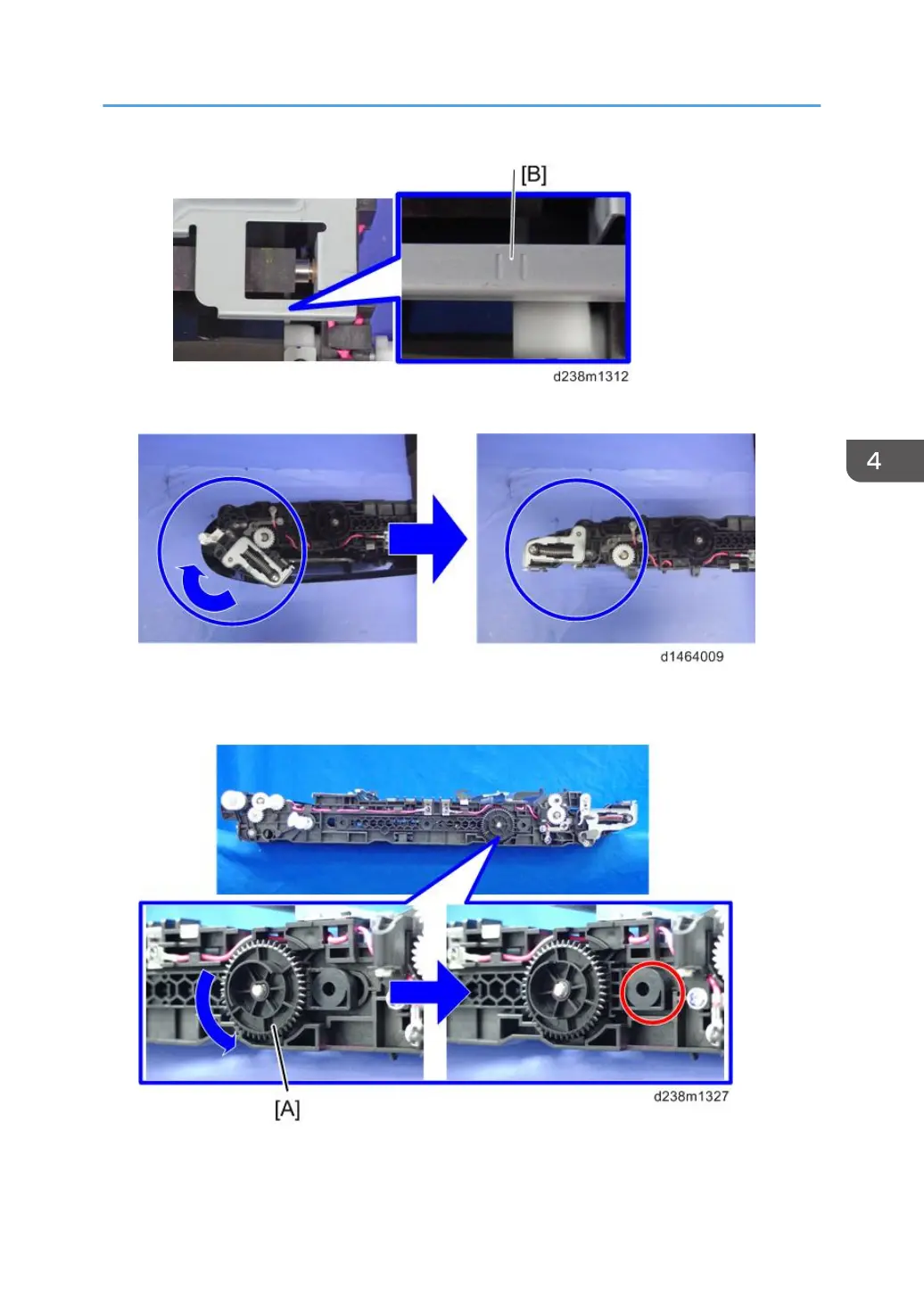

4. Apply tension back to normal.

5. Rotate the gear [A] to change to the CLOSED position.

The part in the red circle closes.

Image Transfer Unit

487
