• The characteristic values attached to the service part must be entered before replacement. It is
recommended that in case Process control/MUSIC after replacement is not completed
successfully, take a note of values of SP3-333, SP3-334 and SP3-335.

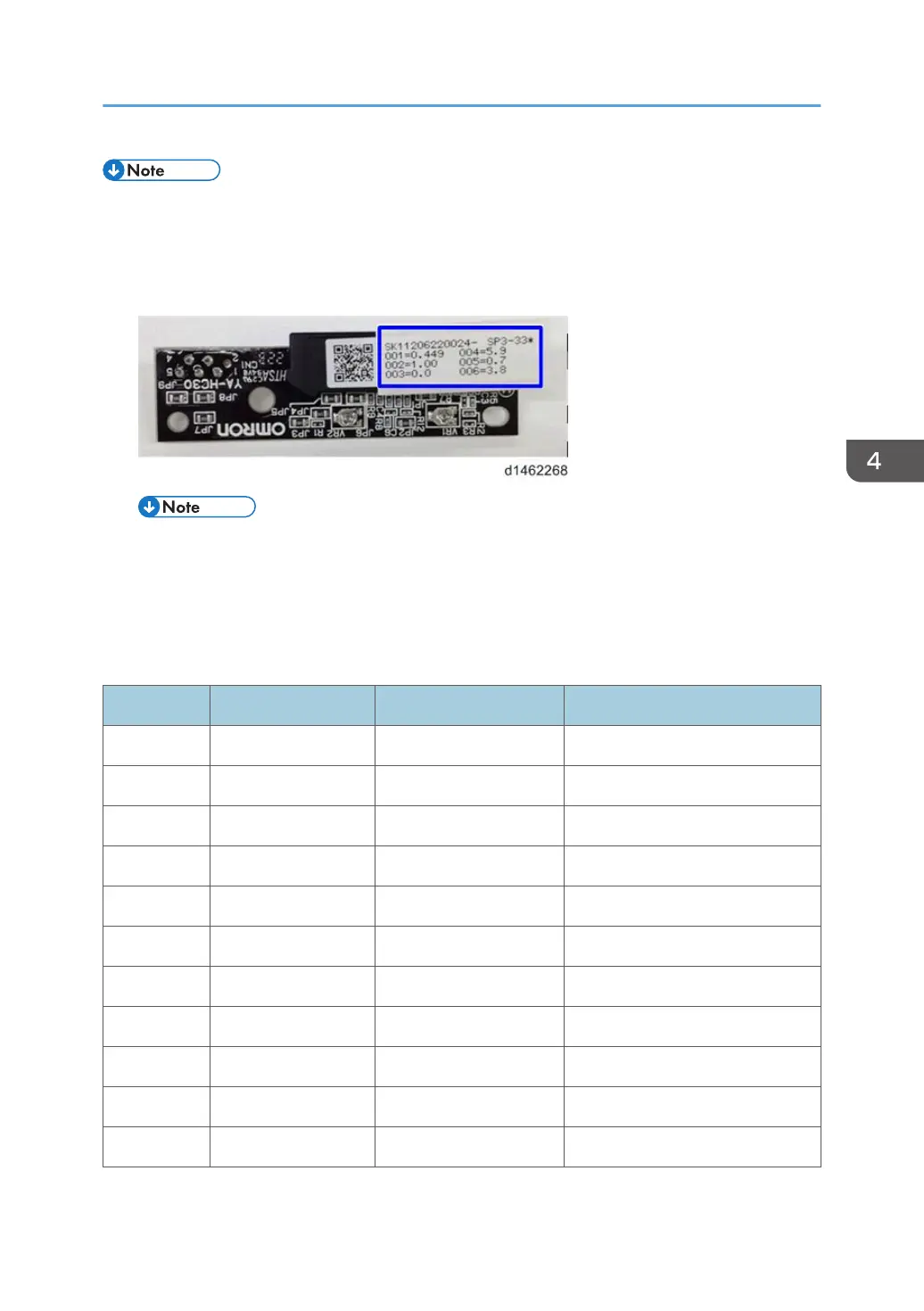

1. Note the characteristic values that are listed on the bar code label.
• TM/ID Sensor (front): F, TM/ID Sensor (center): C, TM/ID Sensor (rear): R, be careful.
2. Turn on the main power switch, and then go into the SP mode.
3. Input the characteristic values.
Input data for TM/ID Sensor: F into SP3-333. Input data for TM/ID sensor: C into SP3-334. Input
data for TM/ID sensor: R into SP3-335.
SP No. Classification 1 Classification 2 Value
3-333-001 ID.Sens TestVal:F K2: Check TM/ID sensor: F, value of [1]
3-333-002 ID.Sens TestVal:F Diffuse Corr TM/ID sensor: F, value of [2]
3-333-003 ID.Sens TestVal:F Vct_reg Check:Slope TM/ID sensor: F, value of [3]
3-333-004 ID.Sens TestVal:F Vct_reg Check:Xint TM/ID sensor: F, value of [4]
3-333-005 ID.Sens TestVal:F Vct_dif Check:Slope TM/ID sensor: F, value of [5]
3-333-006 ID.Sens TestVal:F Vct_dif Check:Xint TM/ID sensor: F, value of [6]
3-334-001 ID.Sens TestVal:C K2: Check TM/ID sensor: C, value of [1]
3-334-002 ID.Sens TestVal:C Diffuse Corr TM/ID sensor: C, value of [2]
3-334-003 ID.Sens TestVal:C Vct_reg Check:Slope TM/ID sensor: C, value of [3]
3-334-004 ID.Sens TestVal:C Vct_reg Check:Xint TM/ID sensor: C, value of [4]
3-334-005 ID.Sens TestVal:C Vct_dif Check:Slope TM/ID sensor: C, value of [5]
Image Transfer Unit
499
