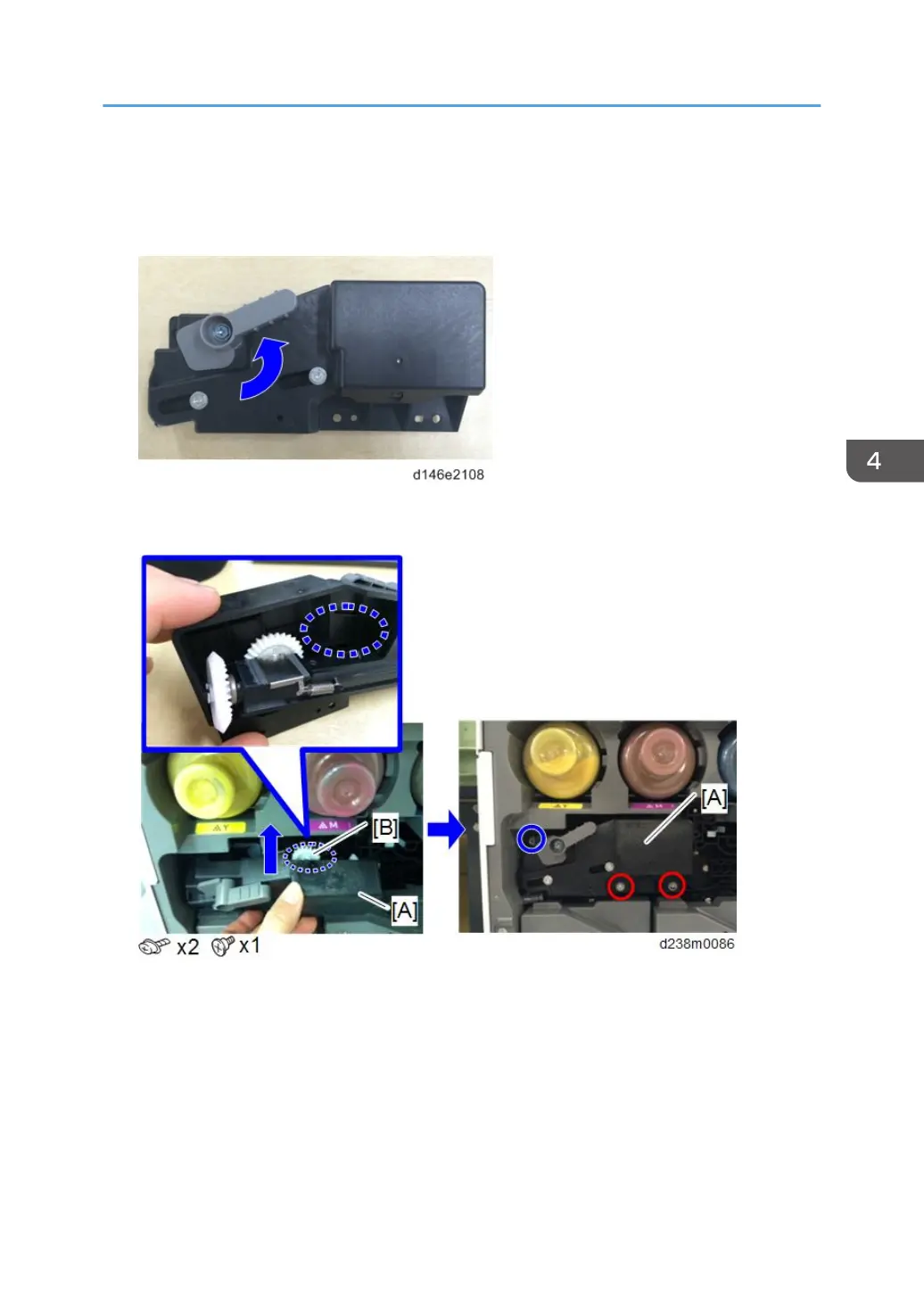

1. Before installing, check that the lever on the image transfer lock unit is in the unlocked
position.
Unlocked position:
2. Install the image transfer lock unit [A] so that the gear [B] on the image transfer unit side
fits into the space in the image transfer lock unit circled in blue below.
Image Transfer Unit
