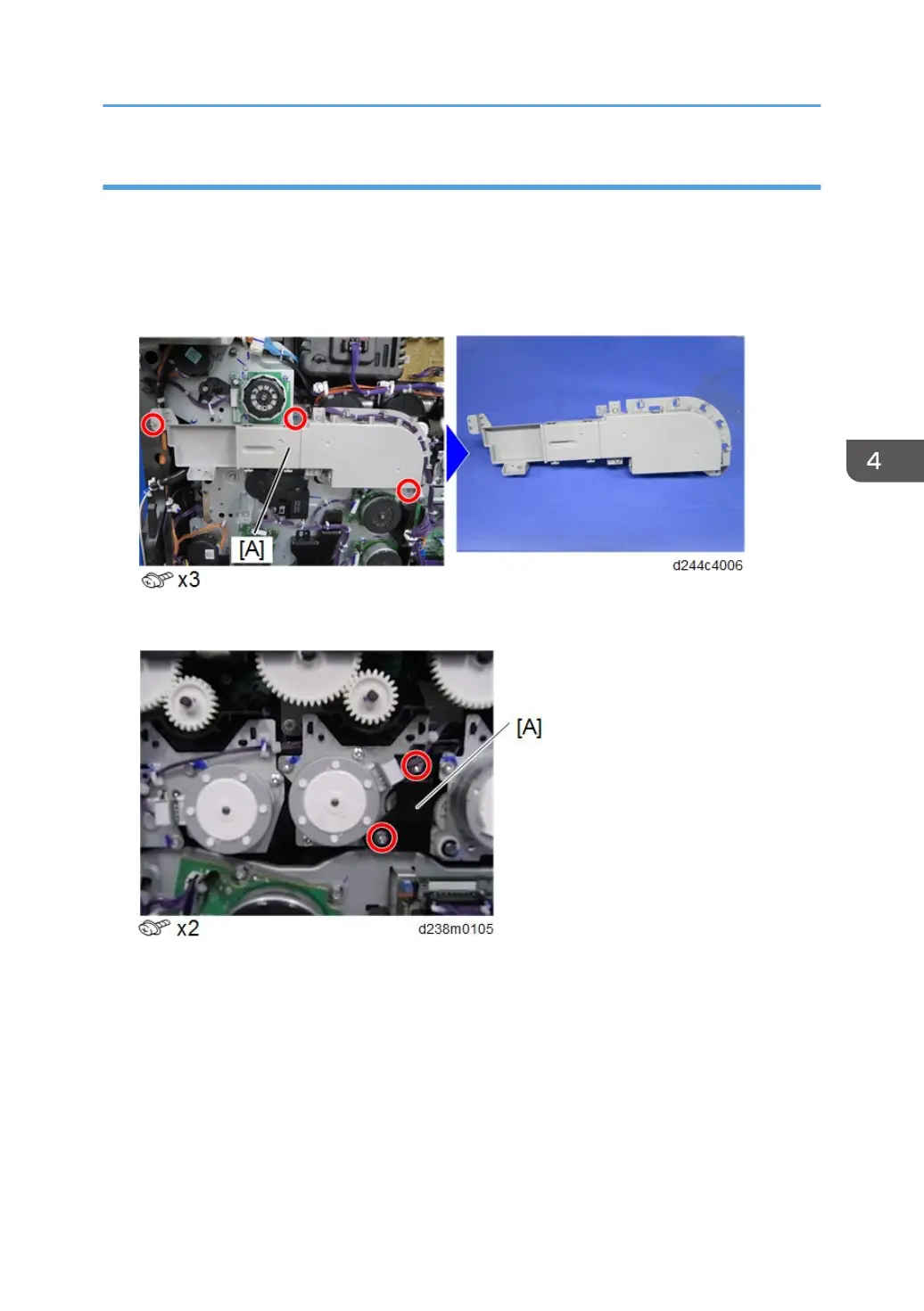

1. Pull out the image transfer belt unit about 5cm.

2. Controller box (page 614)

3. Toner supply cooling fan unit (page 630)

4. Duct [A]

5. Harness guide [A]
