3.

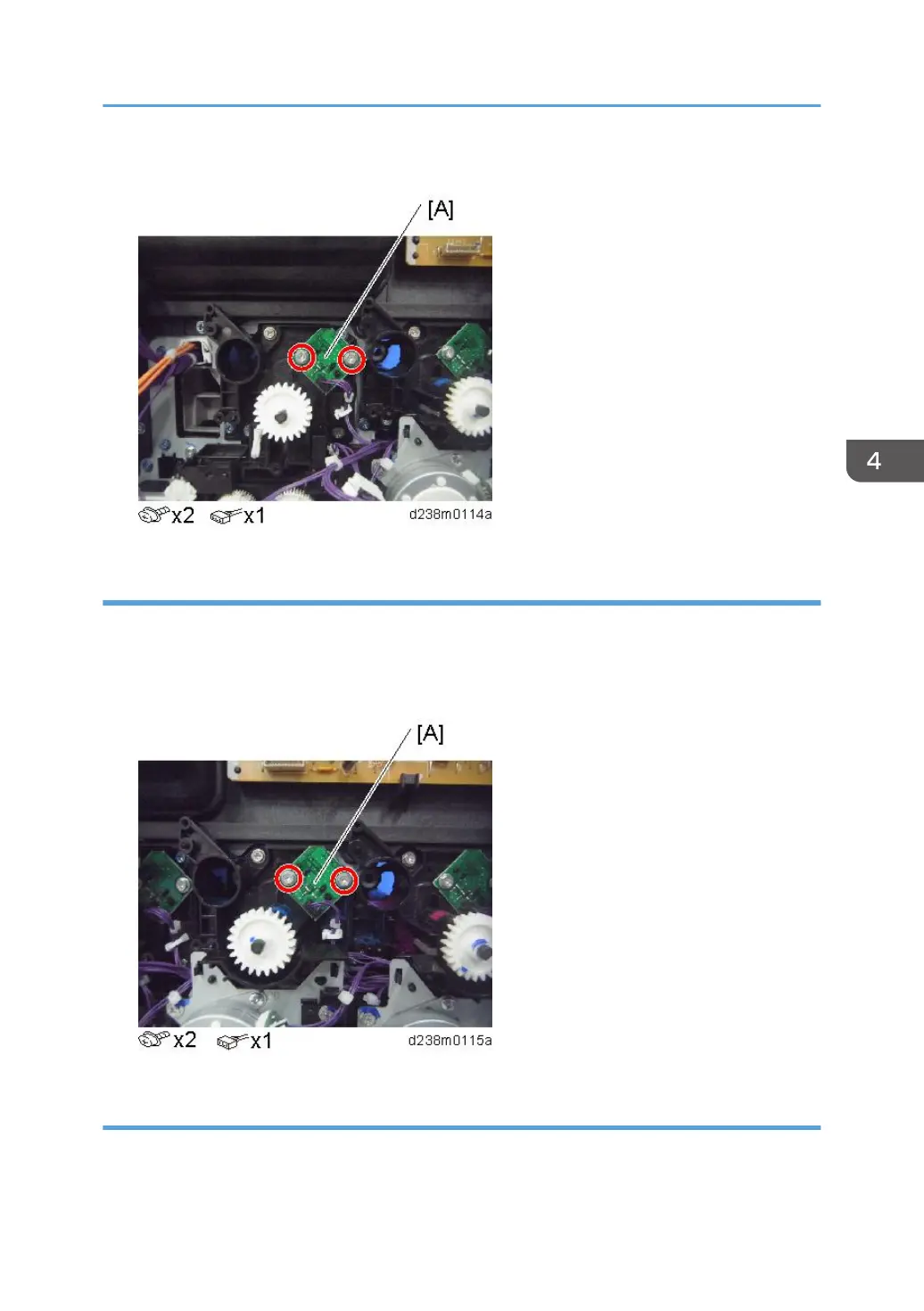

ID chip contact board (K) [A]
C
1.
Toner bottle drive motor/C (
page 531
)
2.
Toner bottle drive motor/M (
page 531
)
3.
ID chip contact board (C) [A]
M
1.
Toner bottle drive motor/M (
page 531
)
2.
Toner bottle drive motor/Y (
page 532
)
