1. See steps 1 to 13 in the transport coil replacement procedure for “Y”. (page 535)

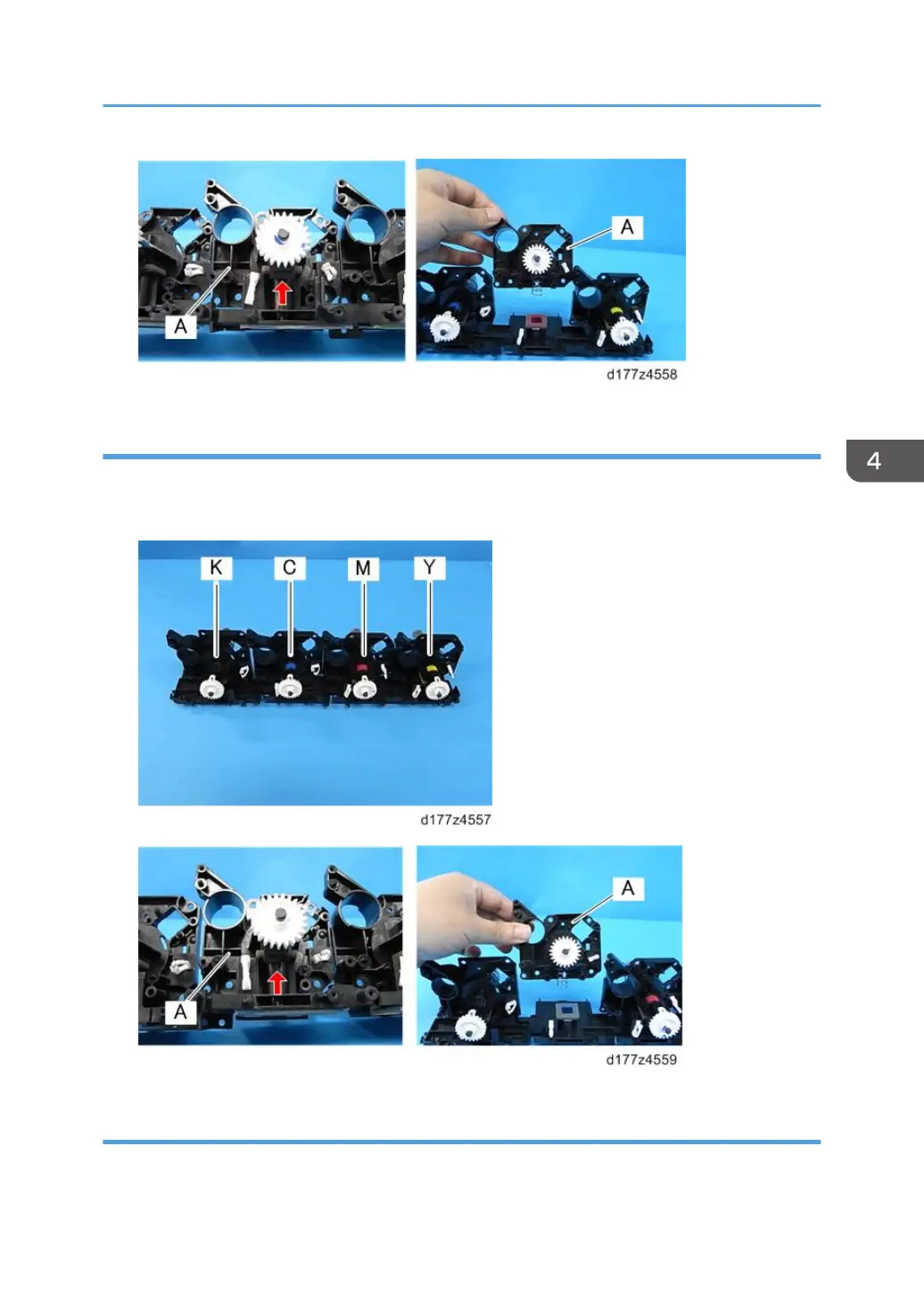

2. Transport coil unit for (C) [A] (tab×1).

1. See steps 1 to 13 in the transport coil replacement procedure for “Y”. (page 535)

Drive Unit

539
