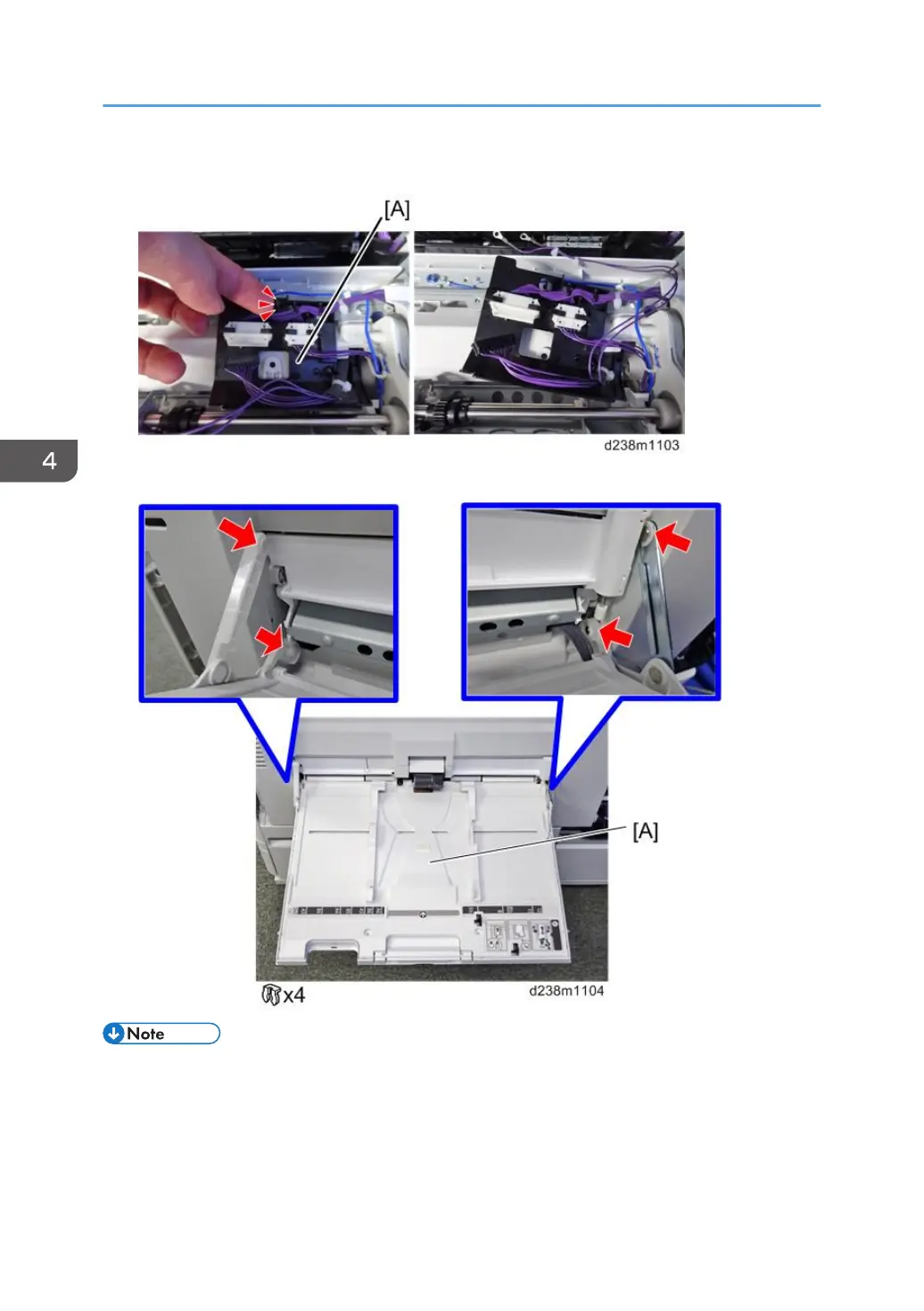

6. Release the tab and loosen the harness bracket [A].

7. Bypass tray [A]

• When attaching the bypass tray, pass the harness through the indicated position as shown.

4. Replacement and Adjustment

578
