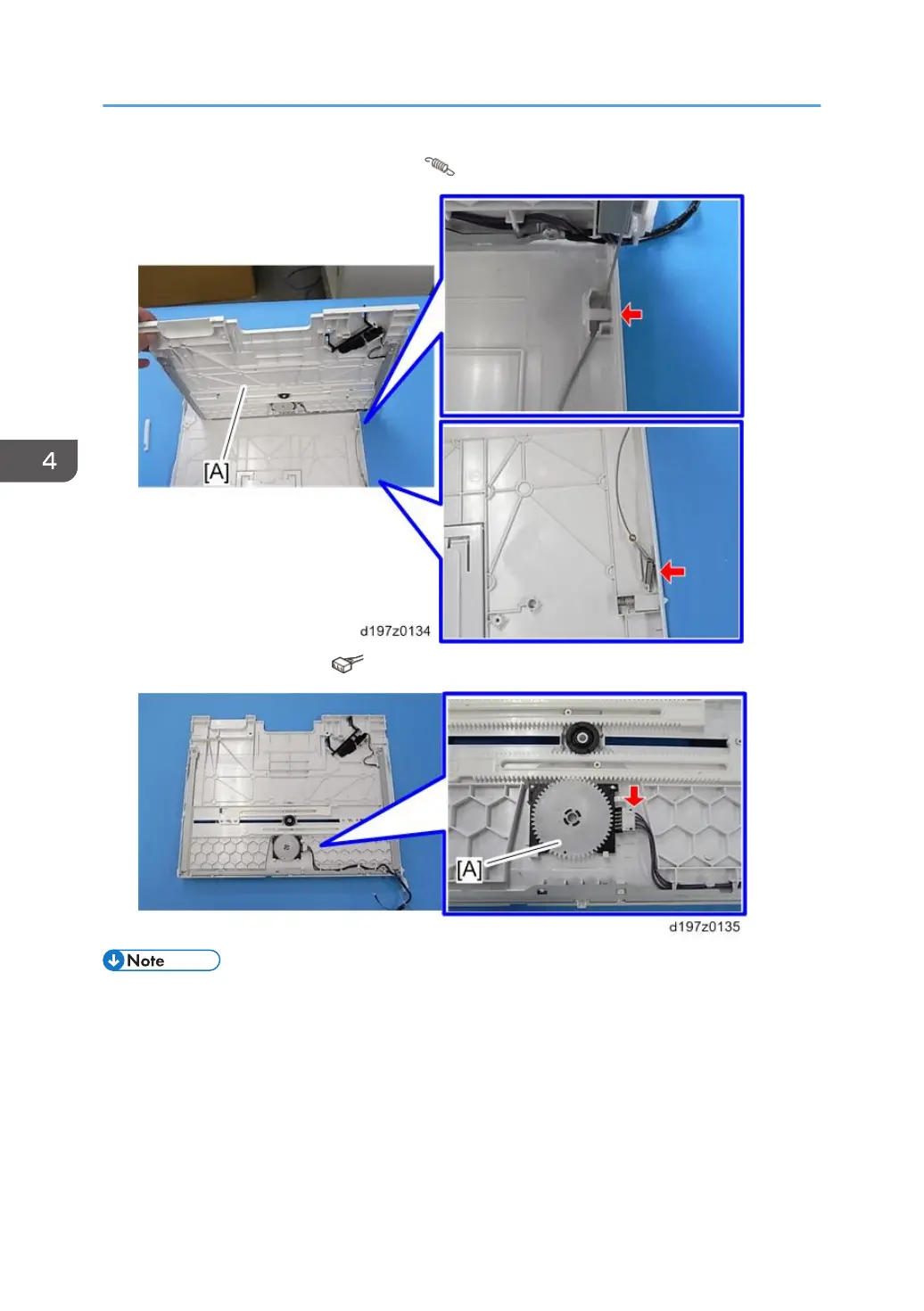

5. Bypass tray upper cover [A] (pin x 1, x1)

6. Bypass width sensor [A] ( ×1, hook x2)

• When installing, the holes must align as shown below.
