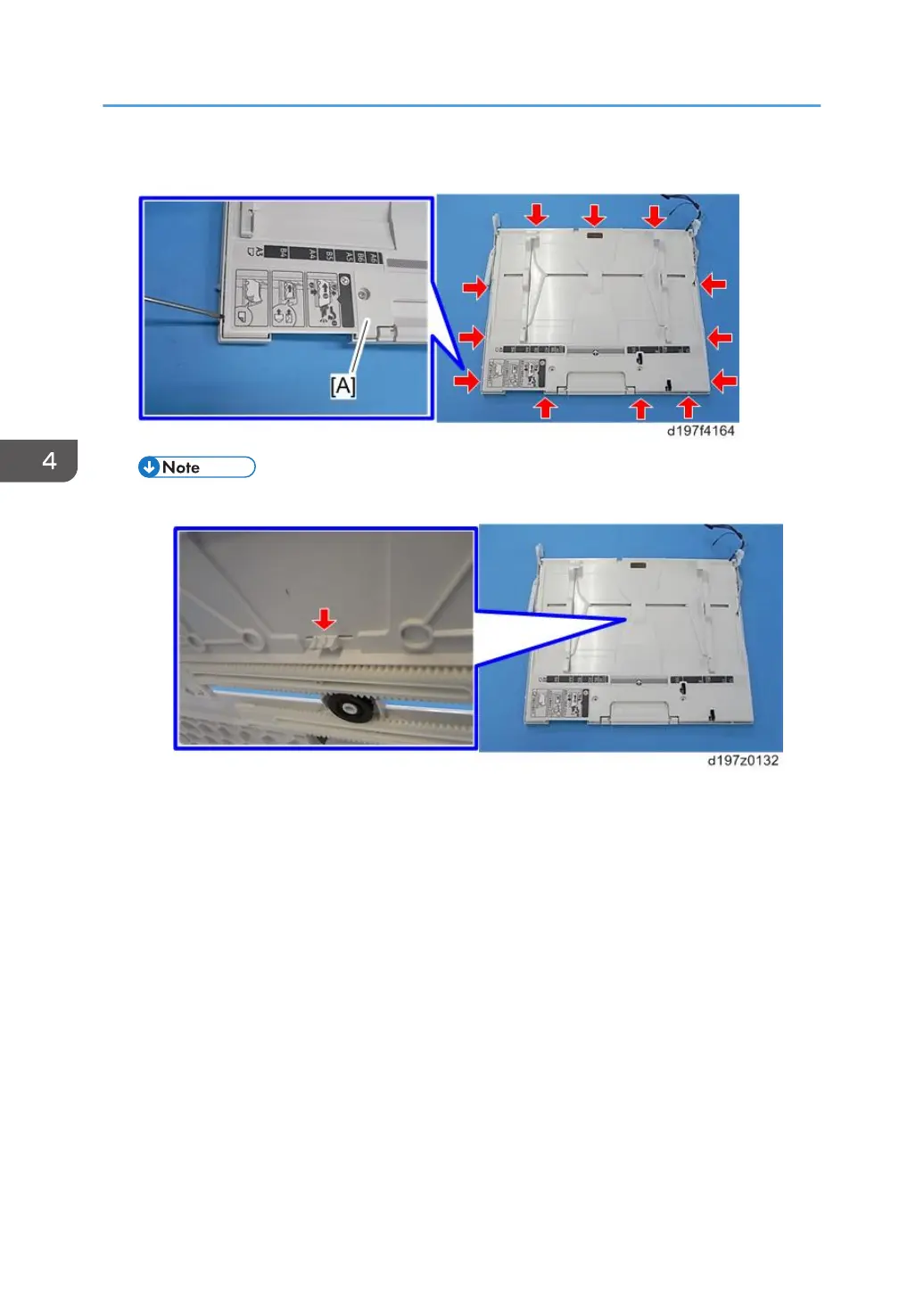

3. Release the hooks around the bypass tray [A].

• There is a hook in the tray cover. Be careful not to damage it during removal or installation.
