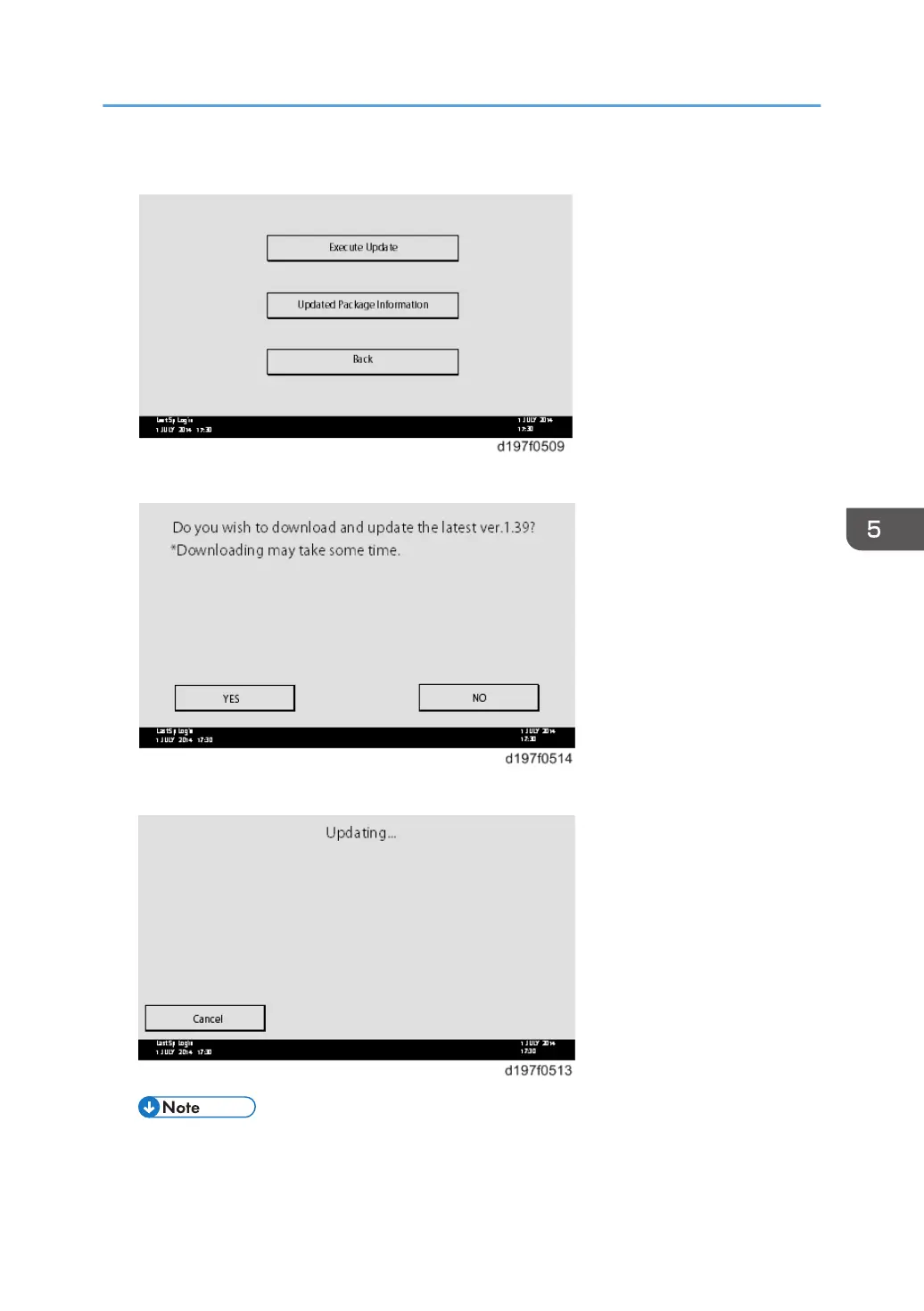

4. Press [Execute Update].

5. Press [YES].

6. The following will be displayed.

• If the error code E66, which indicates that the download of the firmware has failed, is

displayed, go back to step 1.

Firmware Update (Smart Firmware Update)

689
