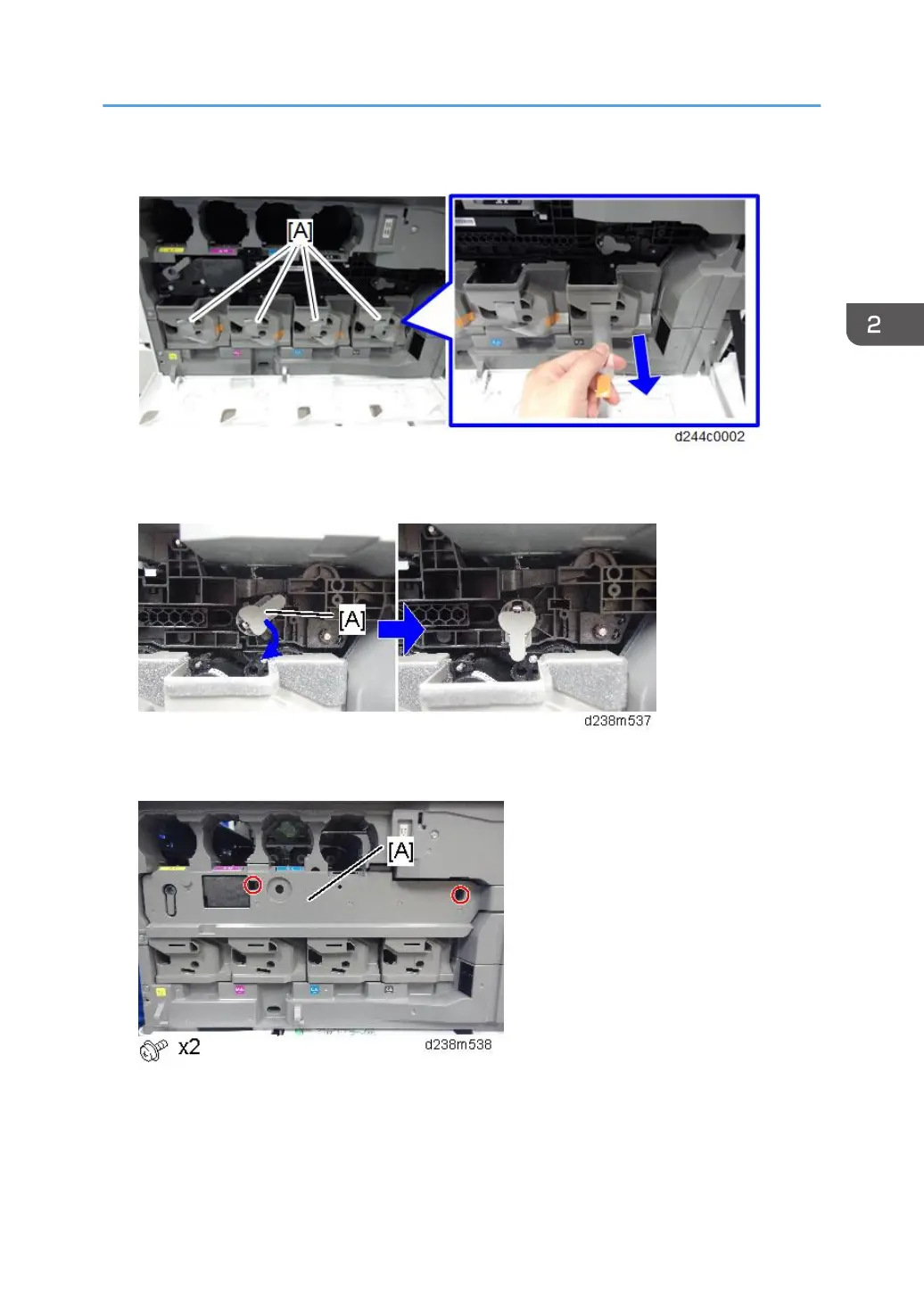

2. Pull out the seals [A] for Y, M, C, and Bk.
3. Rotate the ITB contact lever [A] clockwise, and set it to the position in the following
picture.
4. Attach the image transfer front cover [A] with the two screws (M3×8; provided with the
accessories).
5. Close the front cover.
Main Machine Installation
69

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
