Ricoh MP C2504 - Page 86

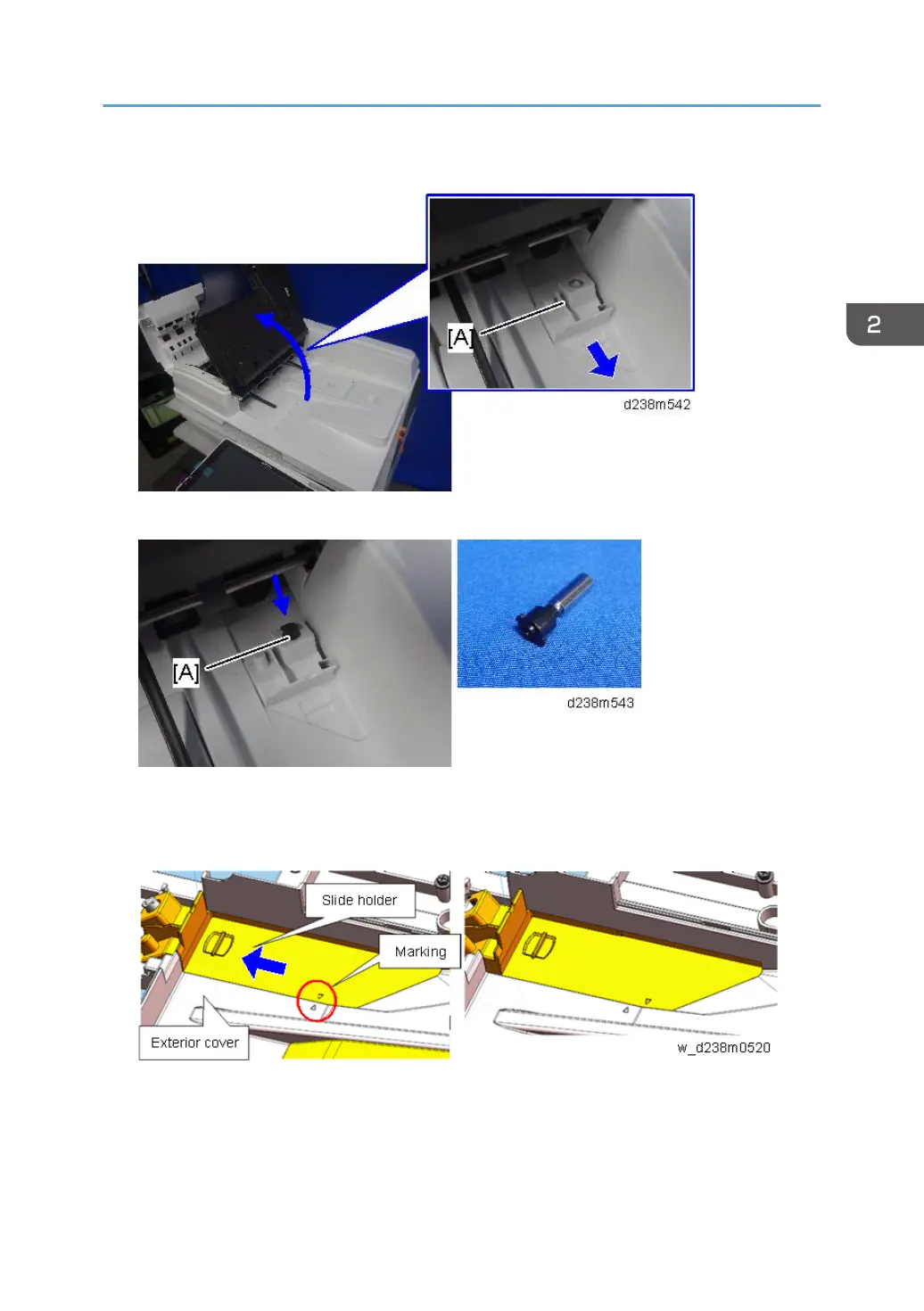

1. Open the ARDF original cover and stamp holder [A].
2. Install the fax stamp [A] provided with the machine.
3. Close the holder.
Make sure that it is pushed in to the position where the marks on the holder and the exterior cover
face each other. If not, jam detection (001) will occur.
Main Machine Installation
77
