Countermeasure (1): Large drifting
An abnormal value may be contained in the SP where the MUSIC corrected result is saved.
1. Execute SP2-180-001 (Line Pos. Adj.: Clear Color Regist.).
2. Execute SP2-111-004 (Forced Line Position: Adj. Mode d).
3. Execute SP2-194-007 (MUSIC Execution Result: Execution Result).

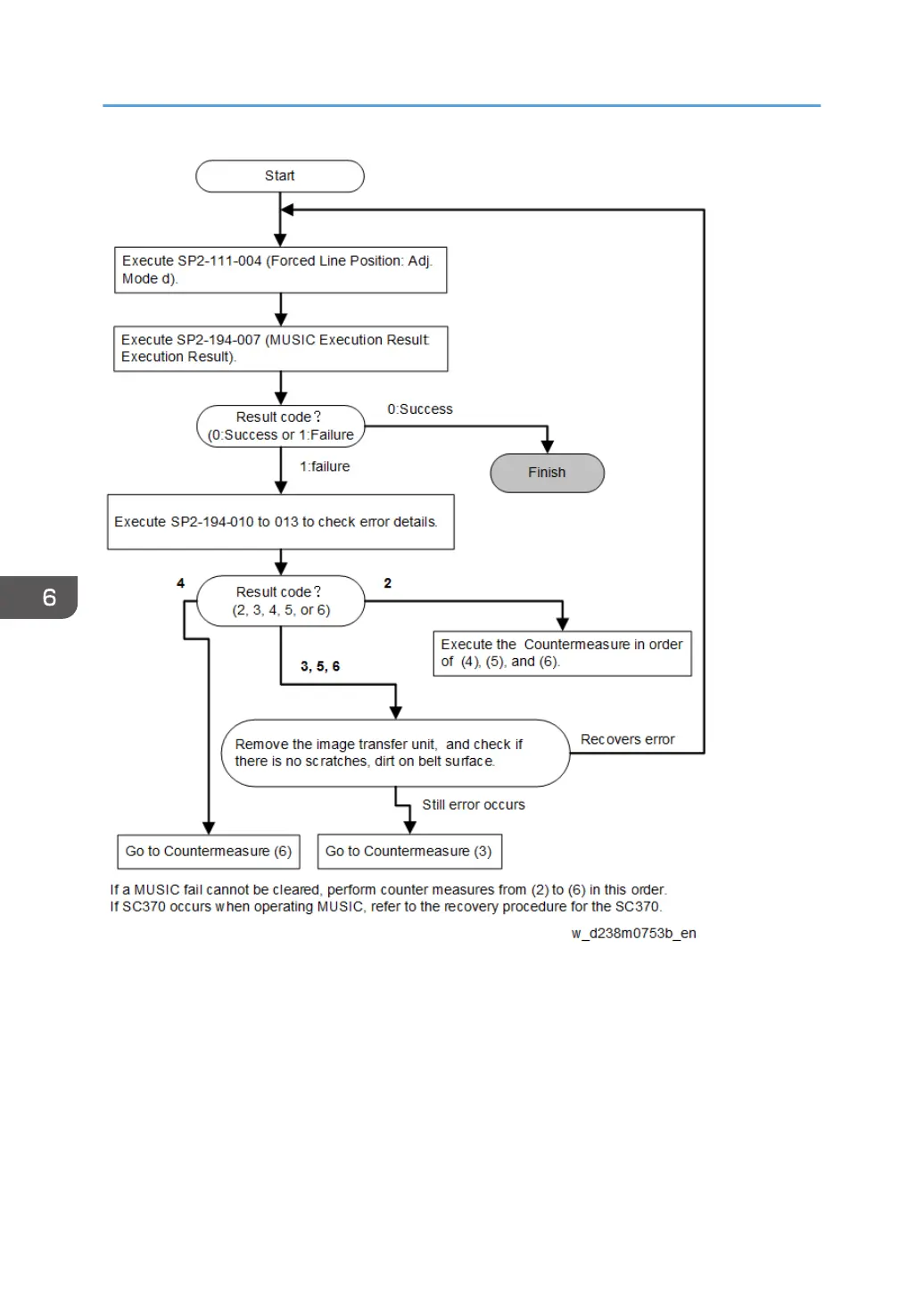

Countermeasure (2): MUSIC pattern density Error
Execute MUSIC and check the result.
6. Troubleshooting
968
