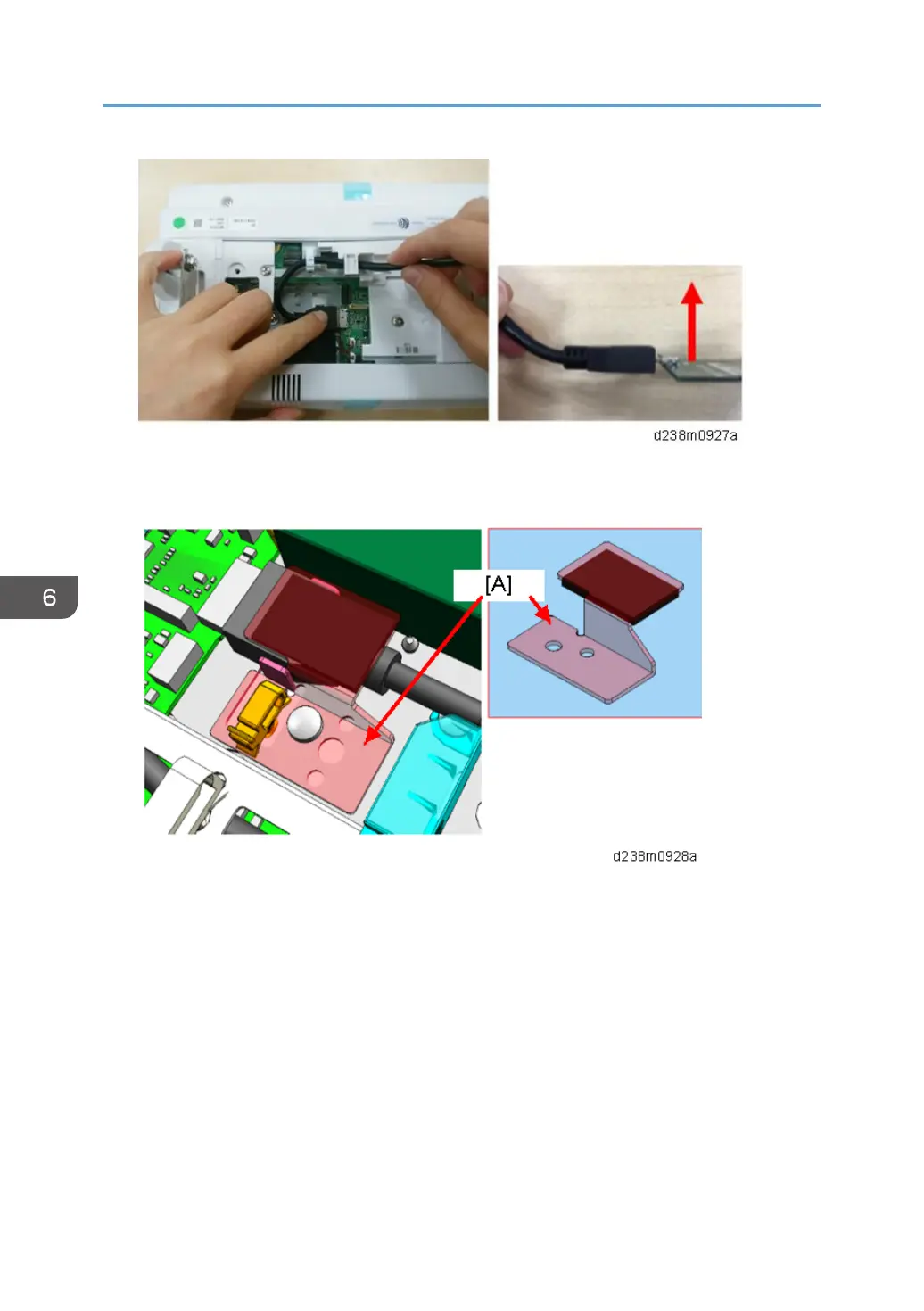

Applied to machines built in October 2016 and later:

A bracket [A] which covers the upper part of the cable will be added.

PCB for the operation panel

6. Troubleshooting

984
