External Hub
Root
Hub
USB Cable
USB Cable
USB Cable
External Hub
USB Peripherals
Host PC
Host
Software
USB Cables

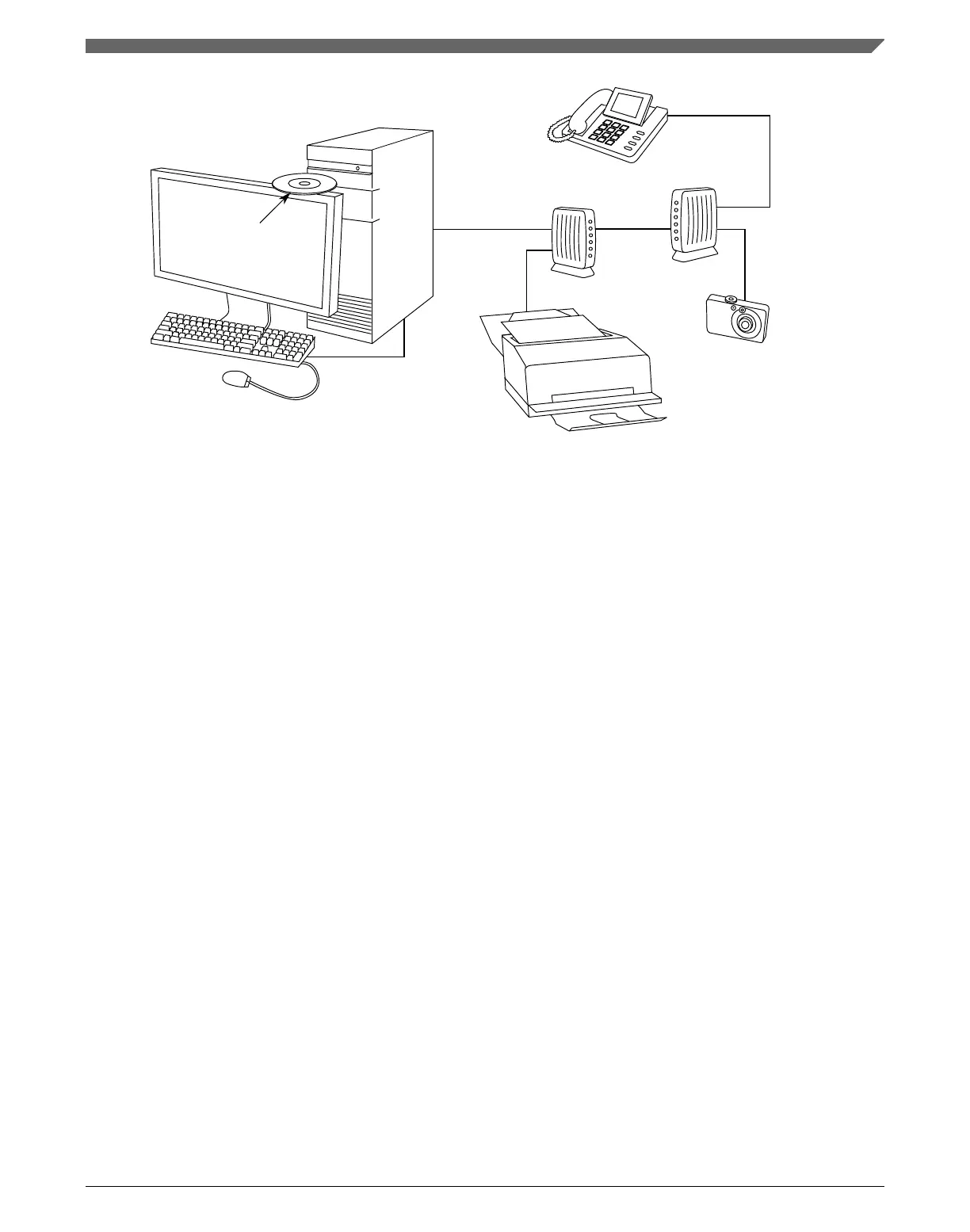

Figure 43-1. Example USB 2.0 system configuration
43.1.3
USB On-The-Go
USB is a popular standard for connecting peripherals and portable consumer electronic
devices such as digital cameras and tablets to host PCs. The On-The-Go (OTG)
Supplement to the USB Specification extends USB to peer-to-peer application. Using
USB OTG technology, consumer electronics, peripherals, and portable devices can
connect to each other to exchange data. For example, a digital camera can connect
directly to a printer, or a keyboard can connect to a tablet to exchange data.
With the USB On-The-Go product, you can develop a fully USB-compliant peripheral
device that can also assume the role of a USB host. Software determines the role of the
device based on hardware signals, and then initializes the device in the appropriate mode
of operation (host or peripheral) based on how it is connected. After connecting, the
devices can negotiate using the OTG protocols to assume the role of host or peripheral
based on the task to be accomplished.
For additional information, see the On-The-Go and Embedded Host Supplement to the
USB 2.0 Specification.
Chapter 43 Universal Serial Bus Full Speed OTG Controller (USBFSOTG)
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
NXP Semiconductors 1071
