PCS
Master SIN
SCK (CPOL = 0)
SCK (CPOL = 1)
Master SOUT
transfer 1 transfer 2

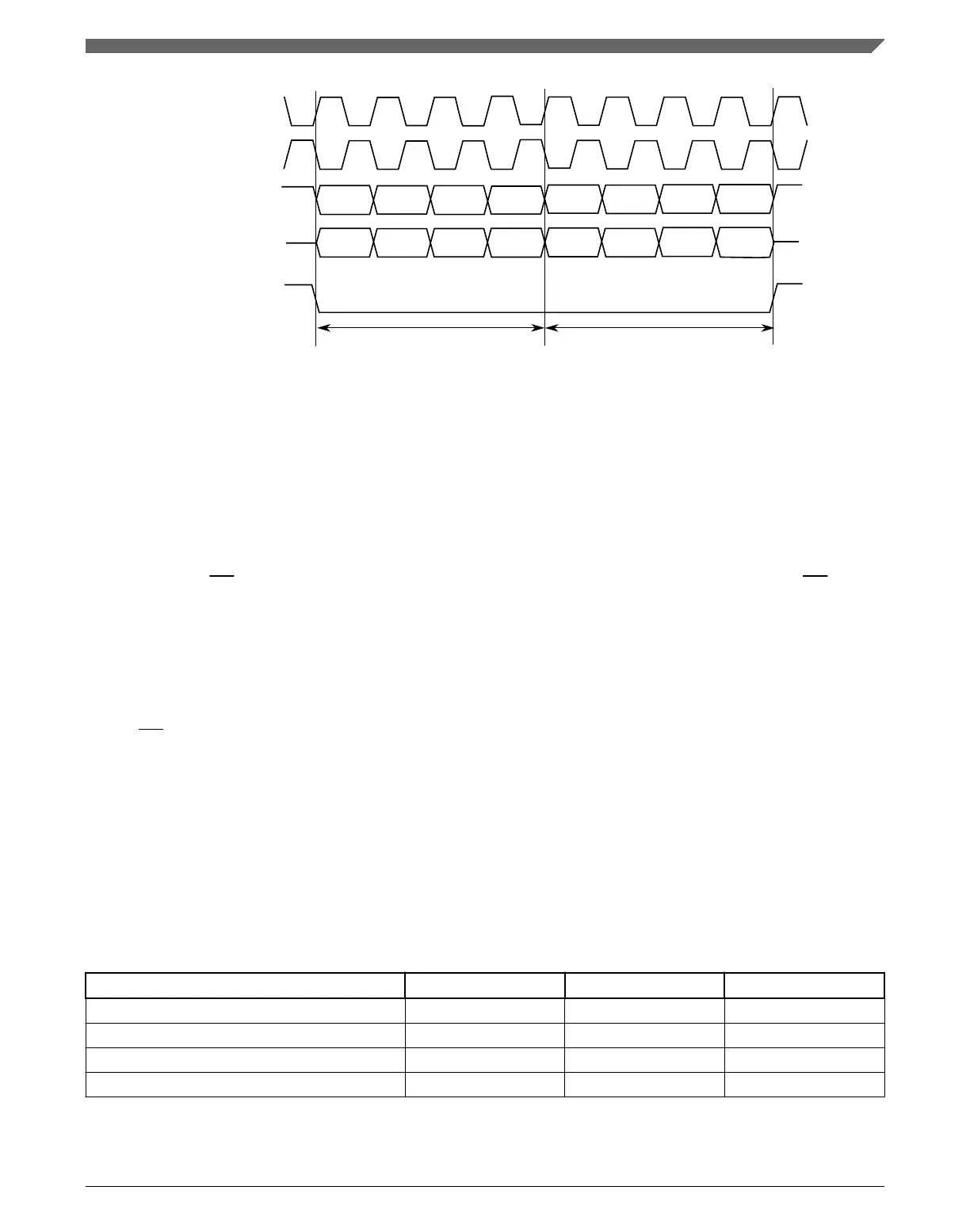

Figure 45-17. Continuous SCK timing diagram (CONT=1)
45.4.6
Slave Mode Operation Constraints
Slave mode logic shift register is buffered. This allows data streaming operation, when
the module is permanently selected and data is shifted in with a constant rate.
The transmit data is transferred at second SCK clock edge of the each frame to the shift
register if the SS signal is asserted and any time when transmit data is ready and SS
signal is negated.
Received data is transferred to the receive buffer at last SCK edge of each frame, defined
by frame size programmed to the CTAR0/1 register. Then the data from the buffer is
transferred to the RXFIFO or DDR register.
If the
SS negates before that last SCK edge, the data from shift register is lost.
45.4.7
Interrupts/DMA requests
The module has several conditions that can generate only interrupt requests and two
conditions that can generate interrupt or DMA requests. The following table lists these
conditions.
Table 45-11. Interrupt and DMA request conditions
Condition Flag Interrupt DMA
End of Queue (EOQ) EOQF Yes -
TX FIFO Fill TFFF Yes Yes
Transfer Complete TCF Yes -
TX FIFO Underflow TFUF Yes -
