The voltage reference can provide a reference voltage to external peripherals or a
reference to analog peripherals, such as the ADC, DAC, or CMP.
NOTE
PMC_REGSC[BGEN] bit must be set if the VREF regulator is
required to remain operating in VLPx modes.
NOTE
For either an internal or external reference if the VREF_OUT
functionality is being used, VREF_OUT signal must be
connected to an output load capacitor. Refer the device data
sheet for more details.
3.8
Timers
3.8.1 PDB Configuration
This section summarizes how the module has been configured in the chip. For a
comprehensive description of the module itself, see the module’s dedicated chapter.
Signal
multiplexing
Module signals
Register
access
PDB
Peripheral bus
controller 0
Other peripherals
Transfers

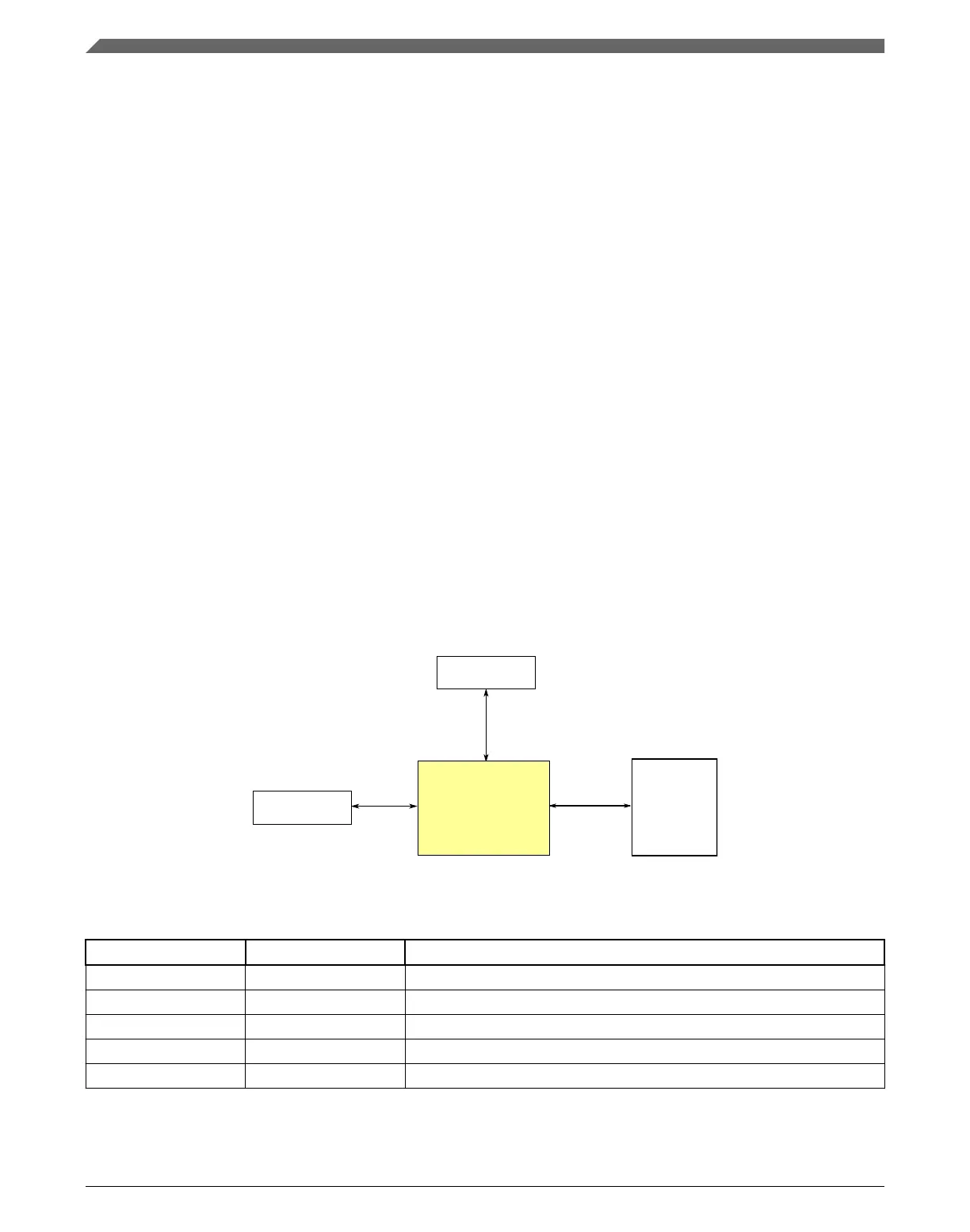

Figure 3-36. PDB configuration
Table 3-50. Reference links to related information
Topic Related module Reference
Full description PDB PDB
System memory map System memory map
Clocking Clock distribution
Power management Power management
Signal multiplexing Port control Signal multiplexing
Timers
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
108 NXP Semiconductors
