NXP Semiconductors K22F series User Manual

• QUADEN = 0
• DECAPEN = 0
• COMP = 1
In Complementary mode, the channel (n+1) output is the inverse of the channel (n)
output.
So, the channel (n+1) output is the same as the channel (n) output when:
• QUADEN = 0
• DECAPEN = 0
• COMP = 0
FTM counter
channel (n+1) match
channel (n+1) output
with COMP = 1
channel (n+1) output
with COMP = 0
channel (n) output
with ELSnB:ELSnA = 1:0
channel (n) match

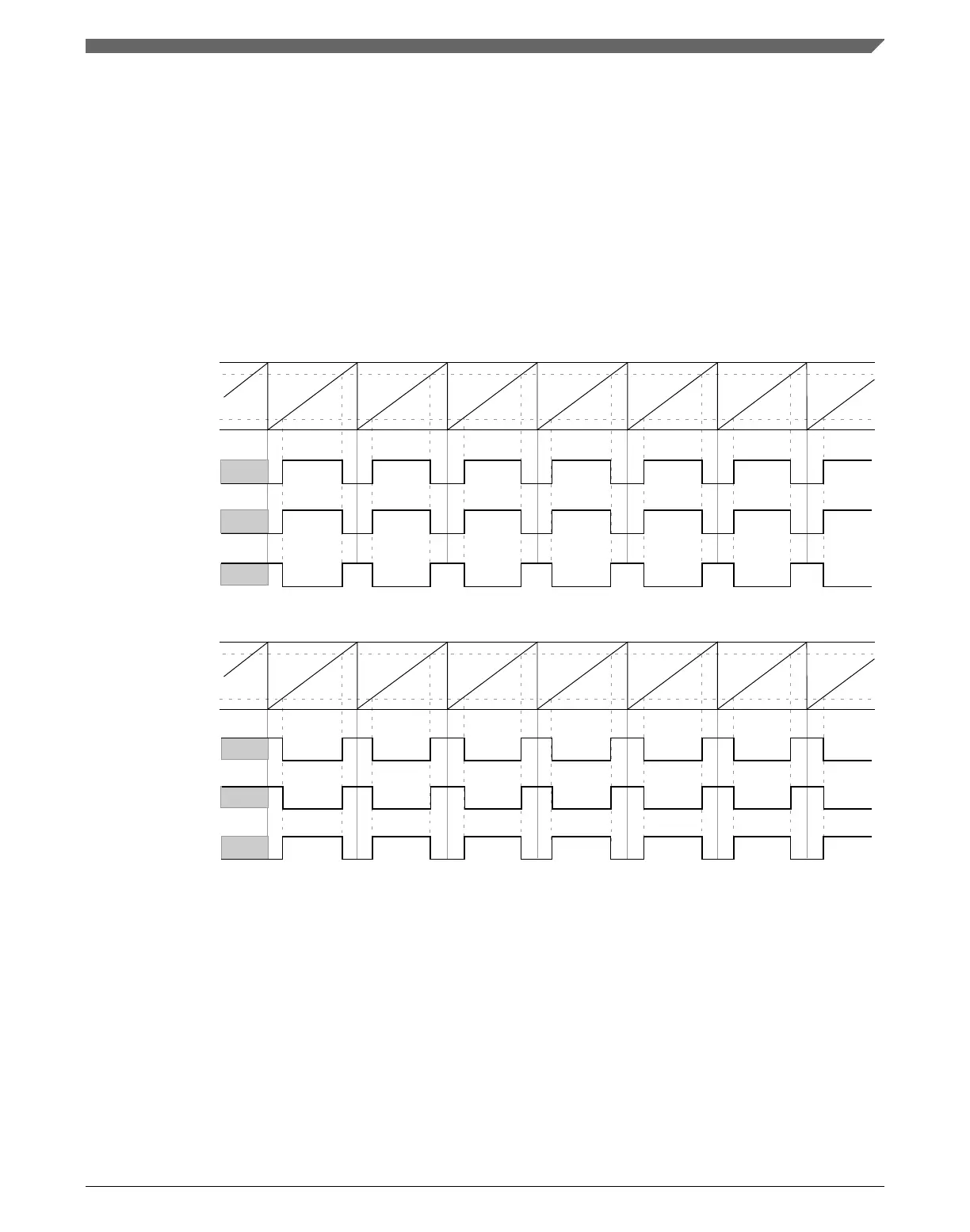

Figure 39-41. Channel (n+1) output in Complementary mode with (ELSnB:ELSnA = 1:0)
FTM counter
channel (n+1) match
channel (n+1) output
with COMP = 1
channel (n+1) output
with COMP = 0
channel (n) output
with ELSnB:ELSnA = X:1
channel (n) match
Figure 39-42. Channel (n+1) output in Complementary mode with (ELSnB:ELSnA = X:1)
NOTE
The complementary mode is not available in Output Compare
mode.
39.4.10
Registers updated from write buffers
Chapter 39 FlexTimer Module (FTM)
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
NXP Semiconductors 971
