3.3.3 PMC Configuration
This section summarizes how the module has been configured in the chip. For a
comprehensive description of the module itself, see the module’s dedicated chapter.
Table 3-12. Reference links to related information
Topic Related module Reference
Full description PMC
System memory map System memory map
Power management Power management
Full description
Low-Leakage Wakeup
Unit (LLWU)
LLWU
3.3.4 Low-Leakage Wake-up Unit (LLWU) Configuration
This section summarizes how the module has been configured in the chip. For a
comprehensive description of the module itself, see the module’s dedicated chapter.
Low-Leakage
Wake-up
Unit (LLWU)
Power
Management
Controller
(PMC)
Peripheral
bridge 0
Register
access
Wake-up
requests
Module
Module

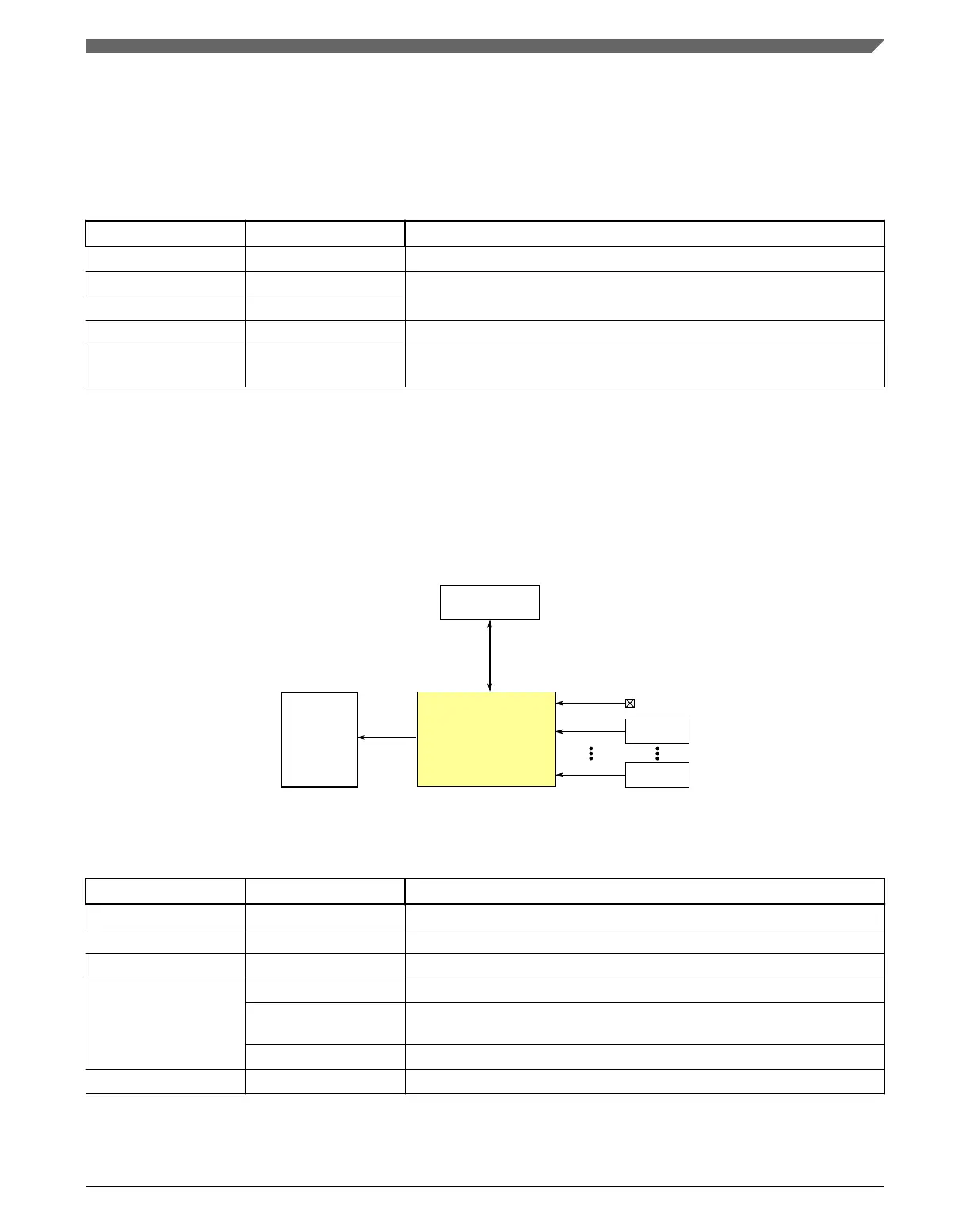

Figure 3-8. Low-Leakage Wake-up Unit configuration
Table 3-13. Reference links to related information
Topic Related module Reference
Full description LLWU
System memory map System memory map
Clocking Clock distribution
Power management Power management chapter
Power Management
Controller (PMC)
Power Management Controller (PMC)
Mode Controller
Wake-up requests LLWU wake-up sources
Chapter 3 Chip Configuration
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
NXP Semiconductors 69
