Interface configurations
45.1.3.1 SPI configuration
The Serial Peripheral Interface (SPI) configuration allows the module to send and receive
serial data. This configuration allows the module to operate as a basic SPI block with
internal FIFOs supporting external queue operation. Transmitted data and received data
reside in separate FIFOs. The host CPU or a DMA controller read the received data from
the Receive FIFO and write transmit data to the Transmit FIFO.
For queued operations, the SPI queues can reside in system RAM, external to the module.
Data transfers between the queues and the module FIFOs are accomplished by a DMA
controller or host CPU. The following figure shows a system example with DMA, SPI,
and external queues in system RAM.
System RAM
SPI
DMA Controller
TX Queue
RX FIFO
TX FIFO
Shift Register
Addr/Ctrl
RX Queue
Addr/Ctrl
Req
Done
Tx Data
Rx Data
Rx Data
Tx Data
or host CPU

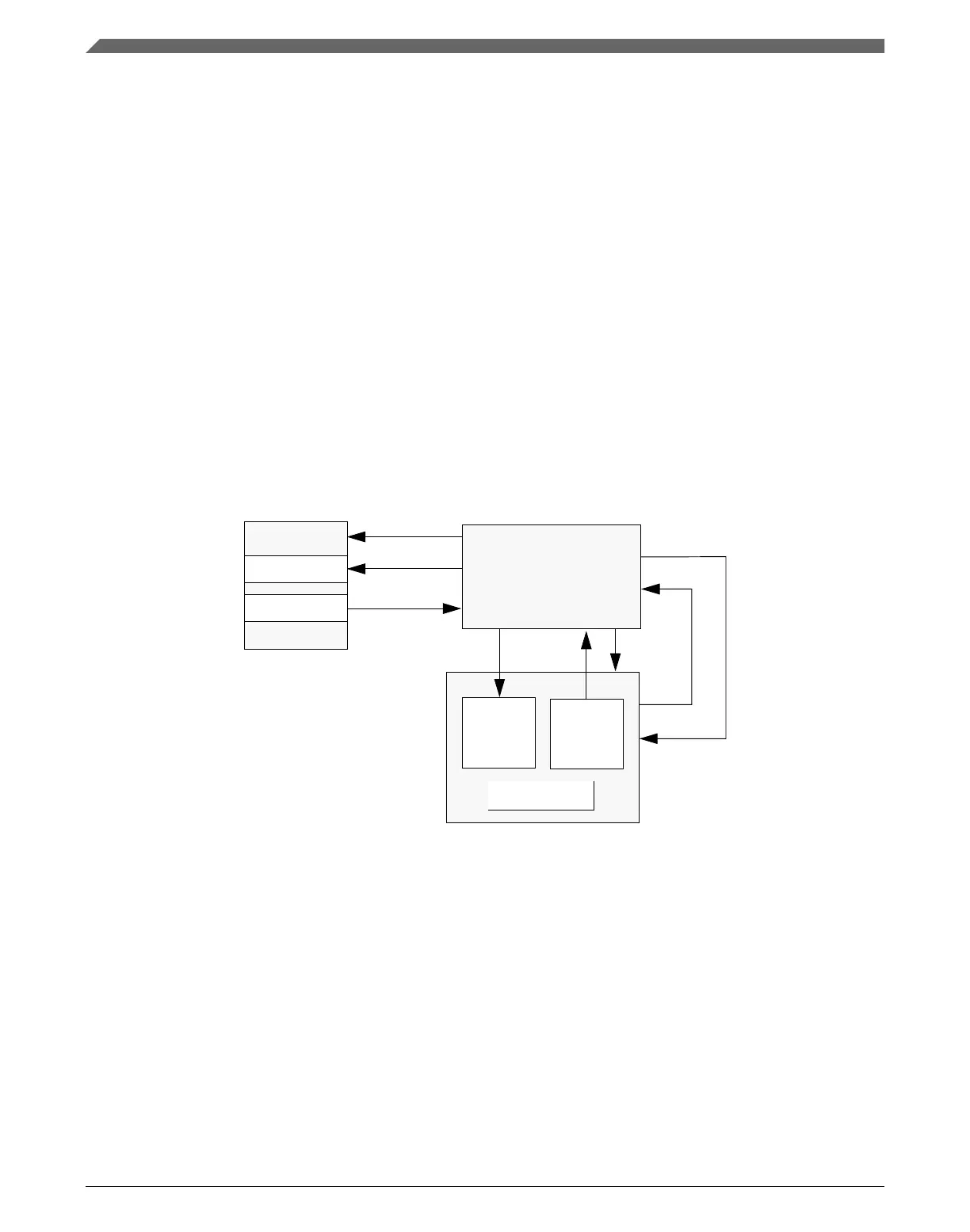

Figure 45-2. SPI with queues and DMA
45.1.4
Modes of Operation
The module supports the following modes of operation that can be divided into two
categories:
• Module-specific modes:
• Master mode
45.1.3
Interface configurations
K22F Sub-Family Reference Manual, Rev. 4, 08/2016
1126 NXP Semiconductors
