Chapter 44

USB Voltage Regulator (VREG)

44.1 Introduction

NOTE

For the chip-specific implementation details of this module's

instances, see the chip configuration information.

The USB Voltage Regulator module is a LDO linear voltage regulator to provide 3.3V

power from an input power supply varying from 2.7 V to 5.5 V. It consists of one 3.3 V

power channel. When the input power supply is below 3.6 V, the regulator goes to pass-

through mode. The following figure shows the ideal relation between the regulator output

and input power supply.

OUTPUT

(Volt)

3.3

2.1

2.7

3.6

5.5

INPUT (Volt)

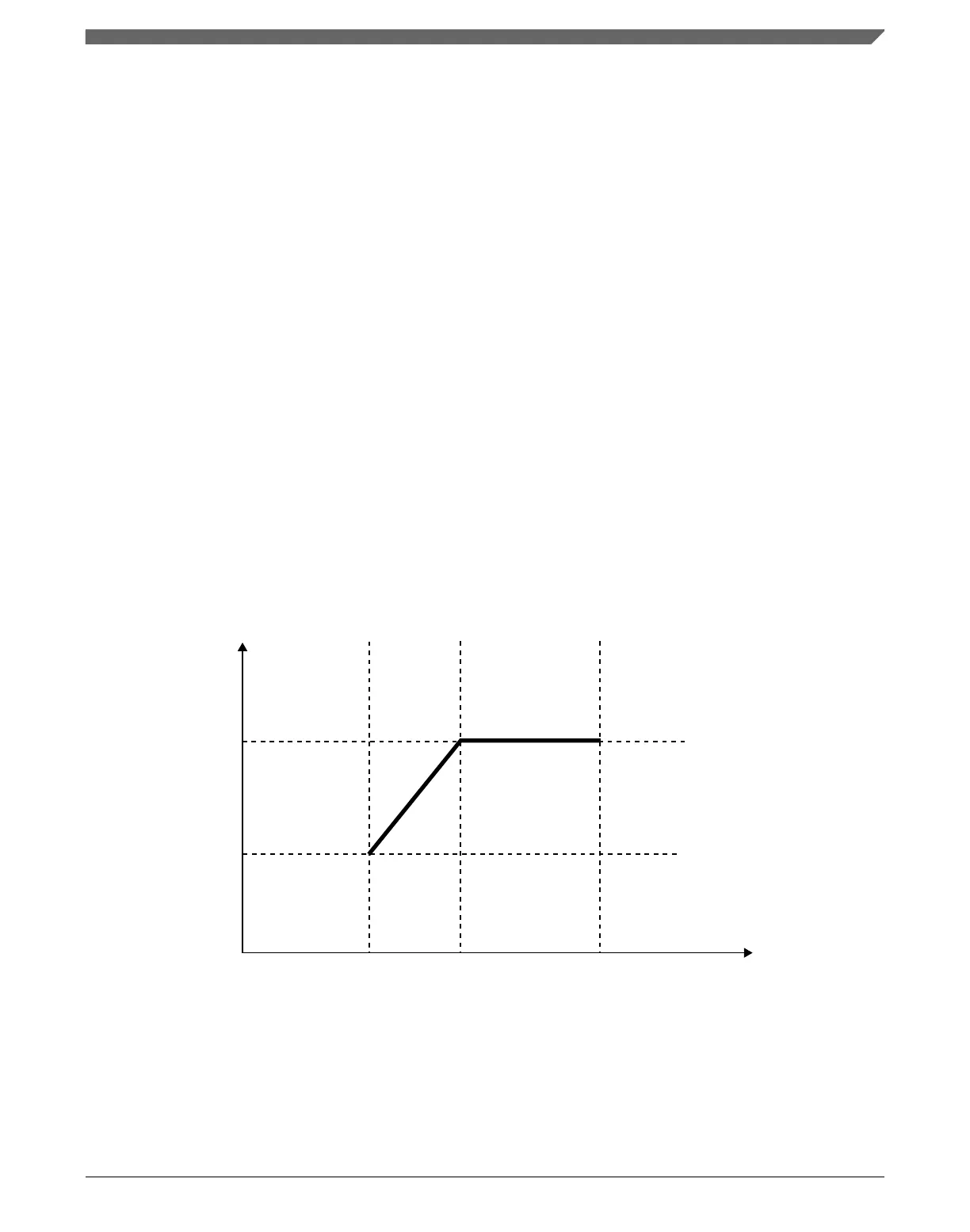

Figure 44-1. Ideal Relation Between the Regulator Output and Input Power Supply

K22F Sub-Family Reference Manual, Rev. 4, 08/2016

NXP Semiconductors 1119
