User manual Rev. 3 — 19 December 2013 24 of 841

NXP Semiconductors

UM10360

Chapter 3: LPC176x/5x System control

3.6 External interrupt inputs

TheLPC176x/5x includes four External Interrupt Inputs as selectable pin functions. The

logic of an individual external interrupt is represented in Figure 6

. In addition, external

interrupts have the ability to wake up the CPU from Power-down mode. Refer to

Section 4.8.8 “

Wake-up from Reduced Power Modes” for details.

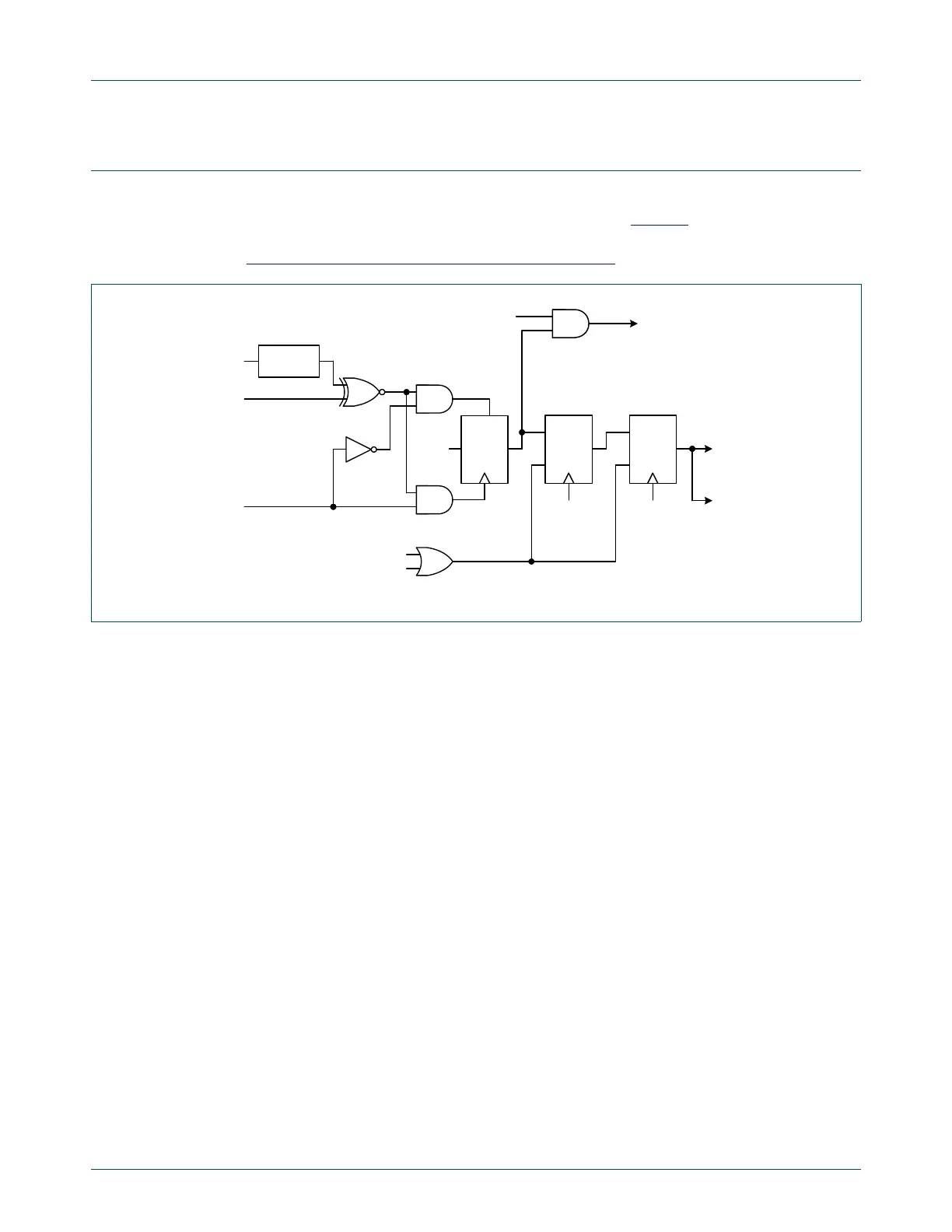

Fig 6. External interrupt logic

Interrupt flag

(one bit of EXTINT)

write to EXTINTi

internal reset

EINTi to wakeup timer

EINTi pin

EXTMODEi

PCLK

to interrupt

controller

EXTPOLARi

EINTi interrupt enable

PCLK

GLITCH

FILTER

APB read

of EXTINTi

100621
