• The alias word at
0x23FFFFFC
maps to bit[7] of the bit-band byte at
0x200FFFFF
:
0x23FFFFFC
=
0x22000000
+ (
0xFFFFF
*32) + (7*4).
• The alias word at
0x22000000
maps to bit[0] of the bit-band byte at
0x20000000
:
0x22000000
=
0x22000000
+ (0*32) + (0 *4).
• The alias word at
0x2200001C
maps to bit[7] of the bit-band byte at
0x20000000
:
0x2200001C
=
0x22000000
+ (0*32) + (7*4).
34.3.2.5.1 Directly accessing an alias region
Writing to a word in the alias region updates a single bit in the bit-band region.
Bit[0] of the value written to a word in the alias region determines the value written to the
targeted bit in the bit-band region. Writing a value with bit[0] set to 1 writes a 1 to the
bit-band bit, and writing a value with bit[0] set to 0 writes a 0 to the bit-band bit.
Bits[31:1] of the alias word have no effect on the bit-band bit. Writing
0x01
has the same
effect as writing
0xFF
. Writing
0x00
has the same effect as writing
0x0E
.
Reading a word in the alias region:
•
0x00000000
indicates that the targeted bit in the bit-band region is set to zero
•
0x00000001
indicates that the targeted bit in the bit-band region is set to 1
34.3.2.5.2 Directly accessing a bit-band region
Section 34.3.2.3
describes the behavior of direct byte, halfword, or word accesses to the
bit-band regions.

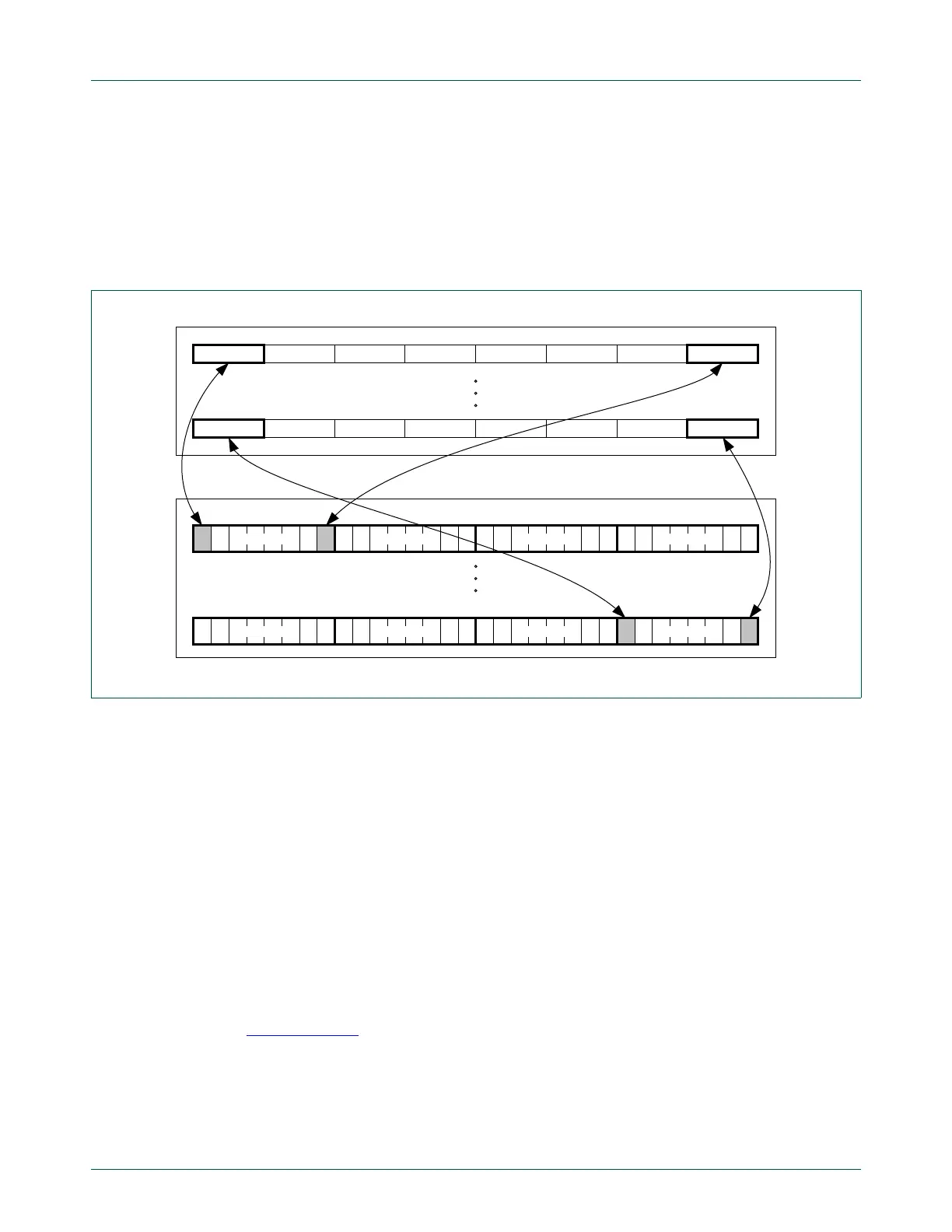

Fig 146. Bit-band mapping
[))))(
[
[))))([))))([))))(&[)))))[)))))[)))))[)))))&
[[[[& [[ [&
0%DOLDVUHJLRQ
[[[[
[))))&[))))'[))))([)))))
0%65$0ELWEDQGUHJLRQ
