Chapter 16: LPC176x/5x CAN1/2
16.17.8 Look-up table programming guidelines
All identifier sections of the ID Look-up Table have to be programmed in such a way, that
each active section is organized as a sorted list or table with an increasing order of the
Source CAN Channel (SCC) together with CAN Identifier in each section.
SCC value equals CAN_controller - 1, i.e., SCC = 0 matches CAN1 and SCC = 1
matches CAN2.
In cases, where a syntax error in the ID Look-up Table is encountered, the Look-up Table
address of the incorrect line is made available in the Look-up Table Error Address
Register (LUTerrAd).
The reporting process in the Look-up Table Error Address Register (LUTerrAd) is a
“run-time” process. Only those address lines with syntax error are reported, which were
passed through the acceptance filtering process.
The following general rules for programming the Look-up Table apply:

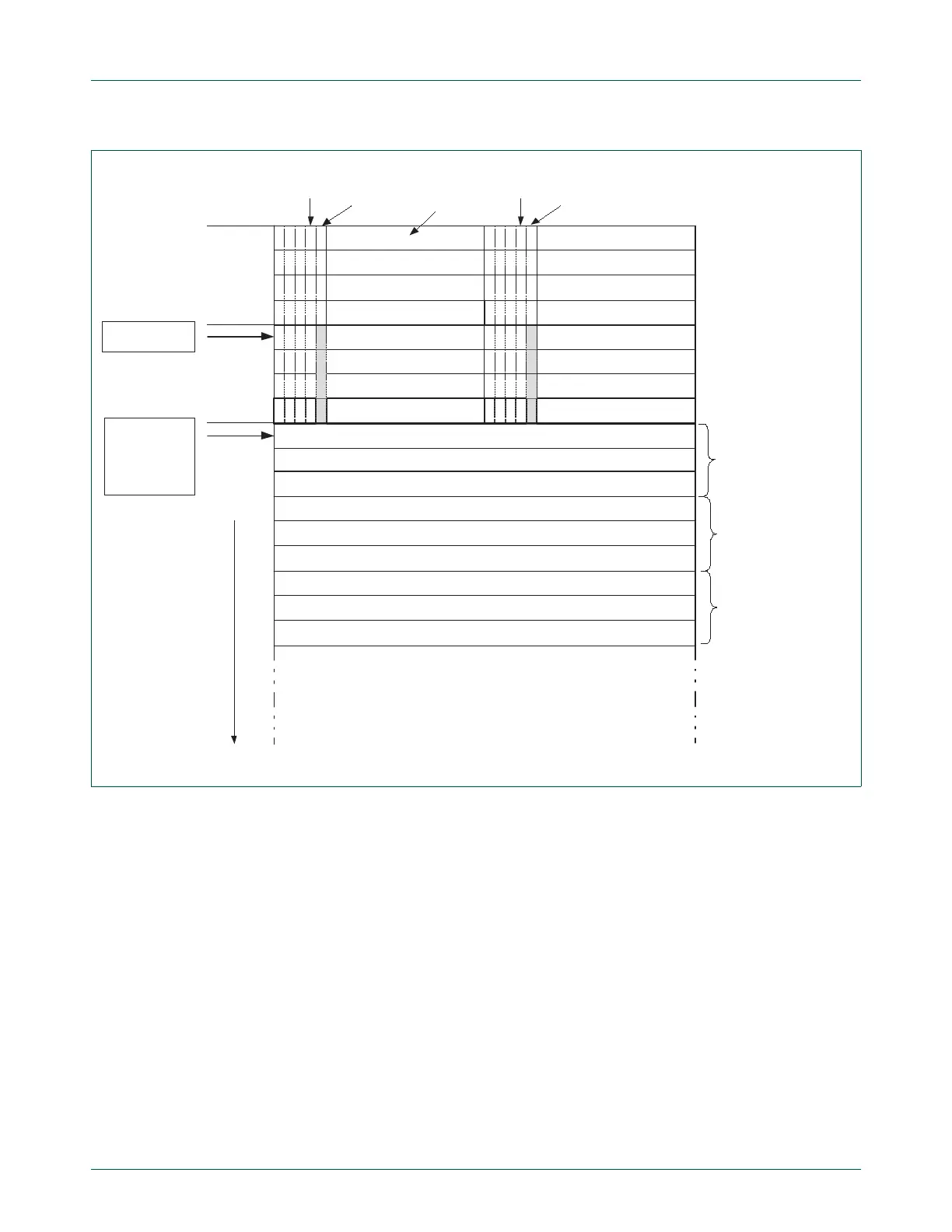

Fig 73. ID Look-up table configuration example (FullCAN activated and enabled)
