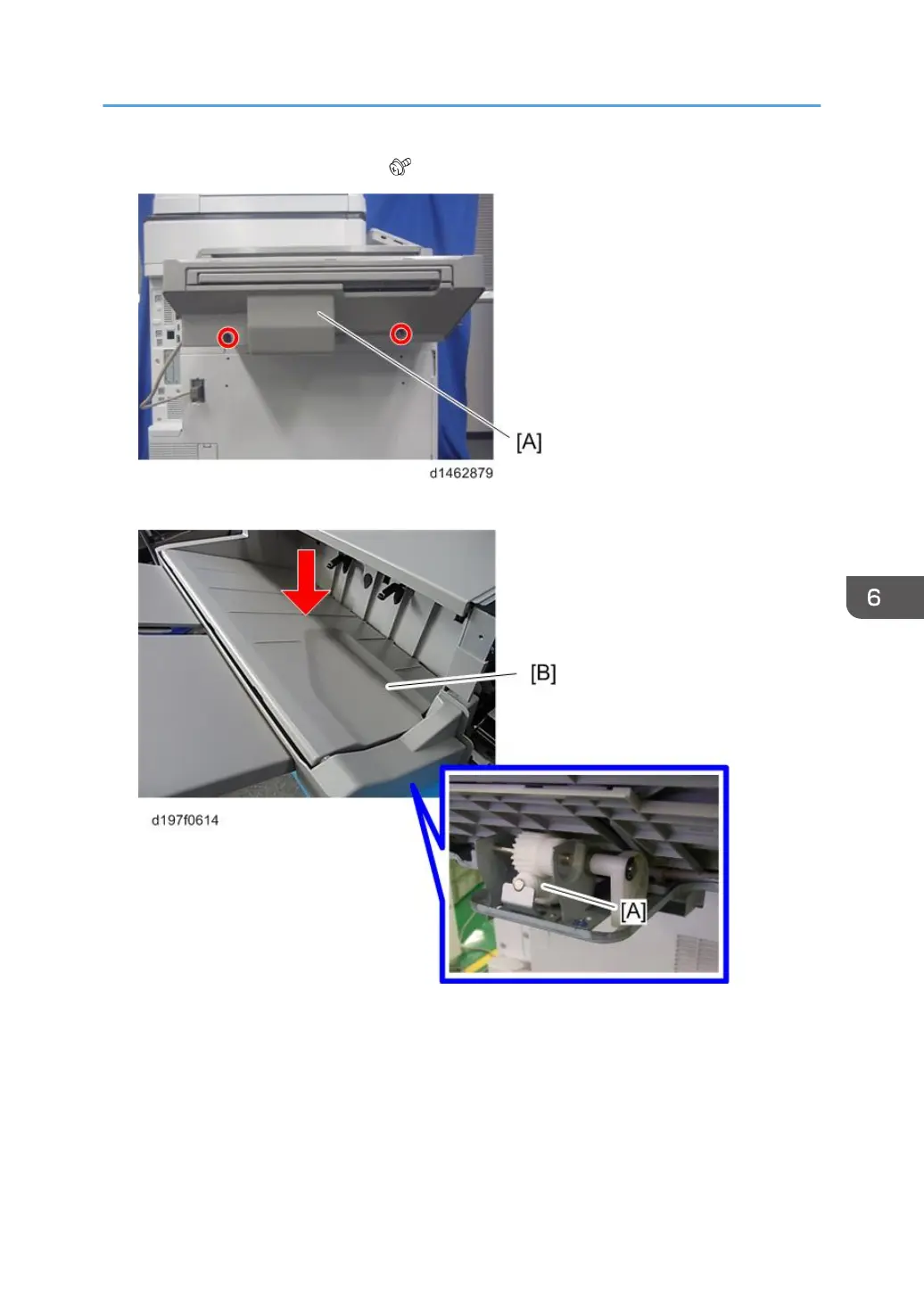

3. Remove the left lower cover [A] ( x2)

4. Rotate the gear [A] to lift down the movable tray [B].

Troubleshooting for Finishing Options
