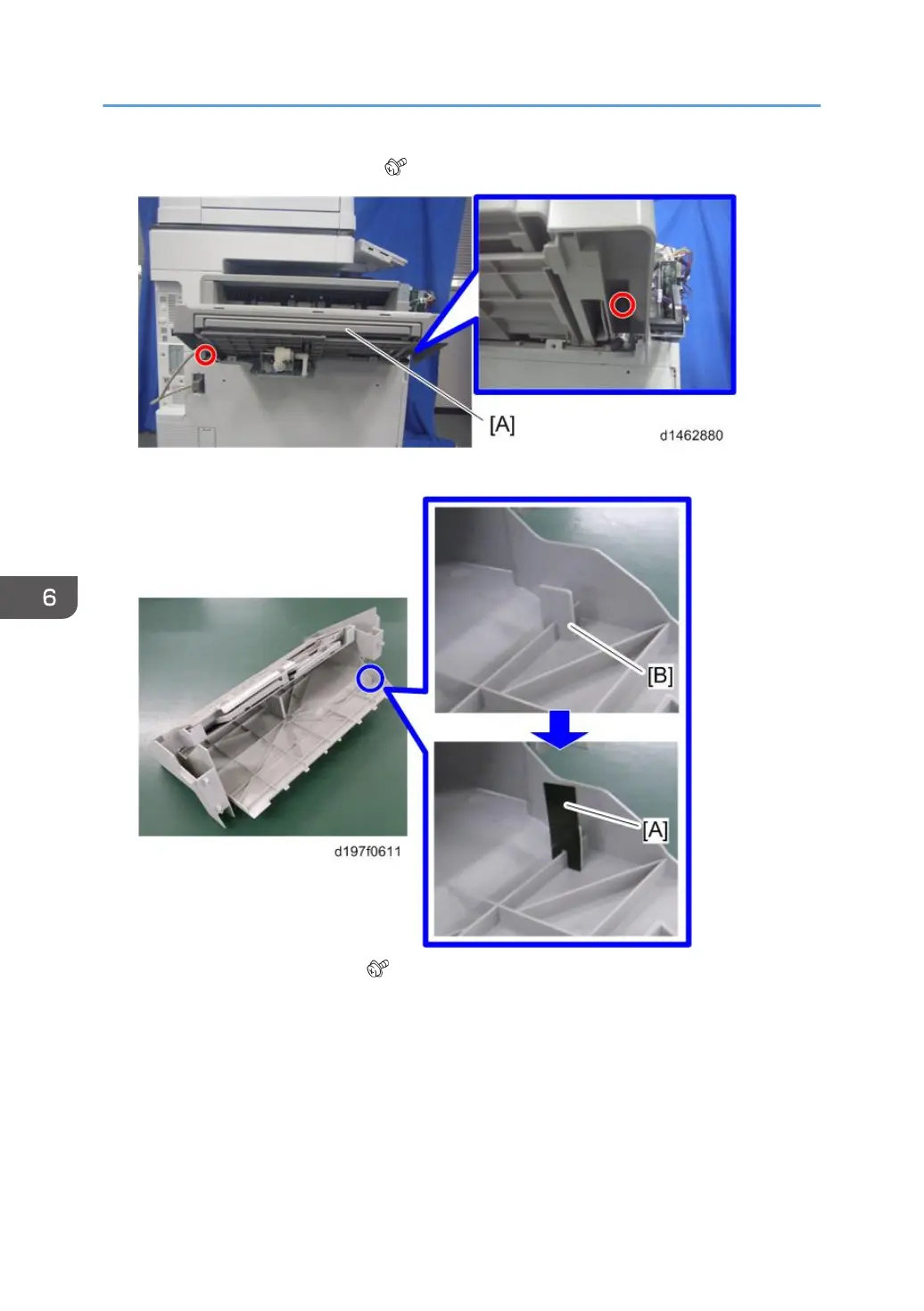

5. Remove the paper exit tray [A] ( x2)

6. Paste the Mylar [A] on the full detection feeler [B].

7. Re-attach the paper exit tray ( x2)
