Ricoh MP C2504 - Page 107

To Next Page

To Previous Page

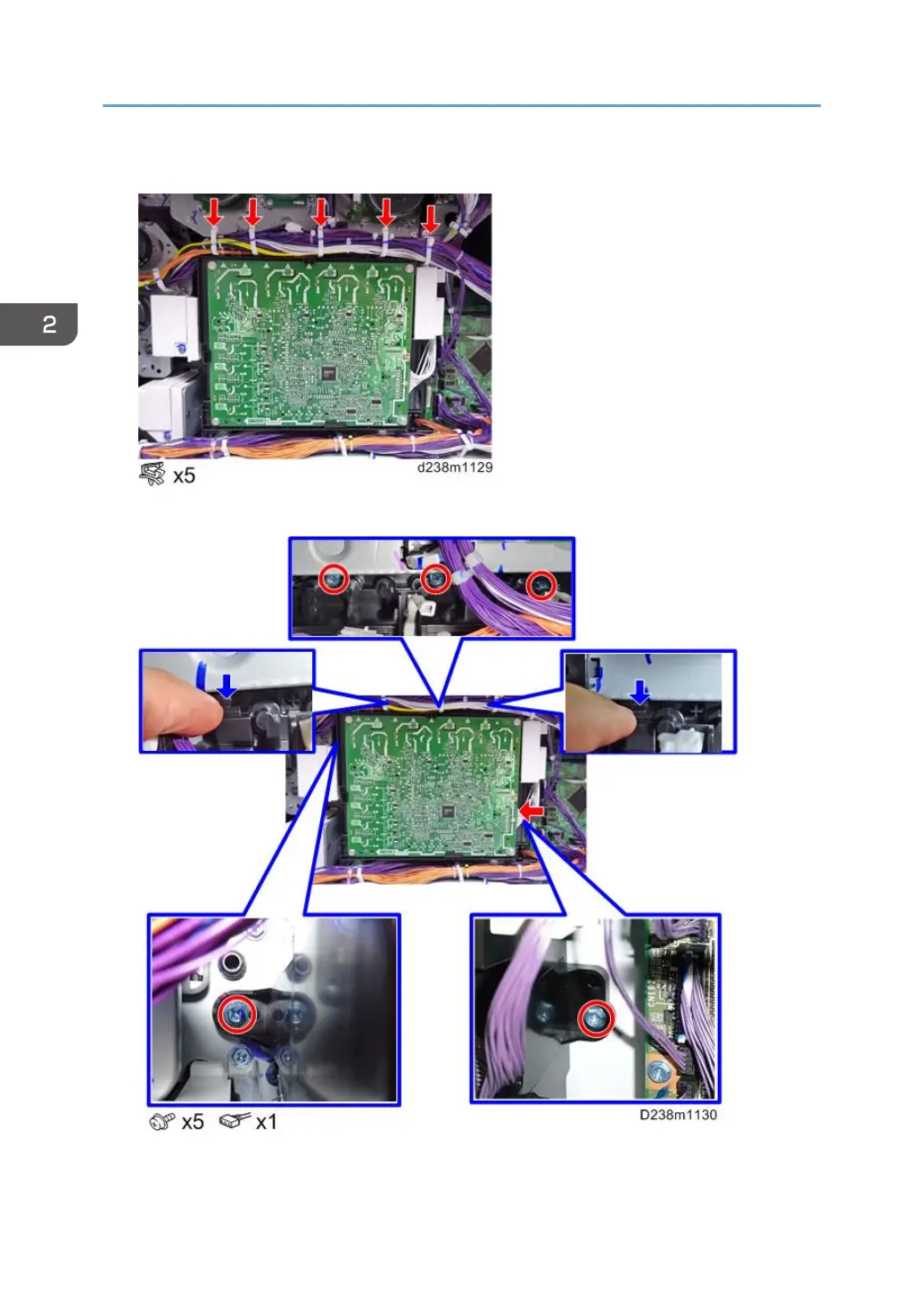

4. Release the 5 clamps.

5. Remove the HVP-CB with bracket [A] (Hook x2).
