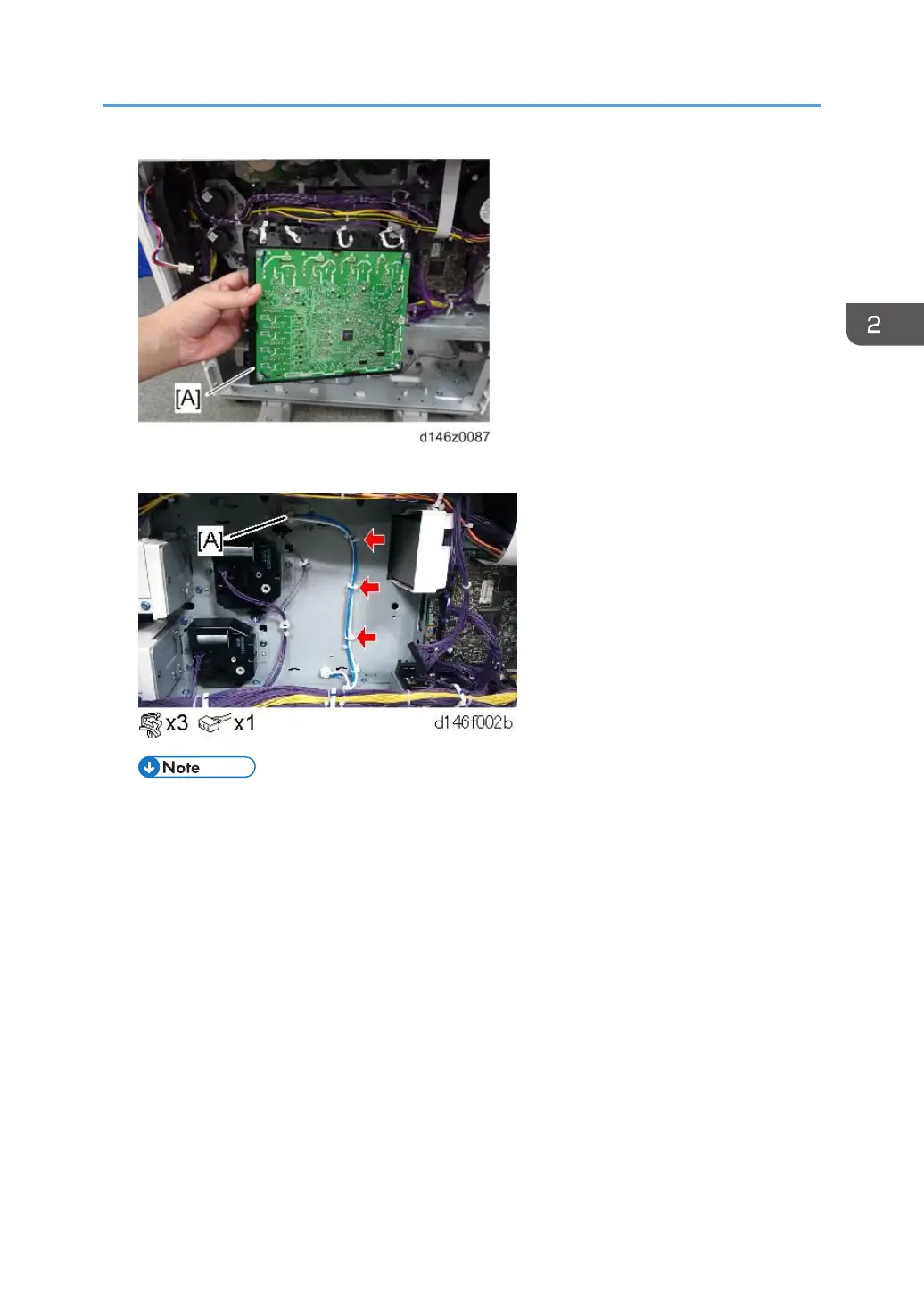

6. Connect the combined Blue/White harness to the back frame [A].

• The harness will be connected to the relay board. See the details in step 8.

7. Reinstall the HVP-CB unit and power supply box.

Anti-Condensation Heater (Scanner, PCDU)
