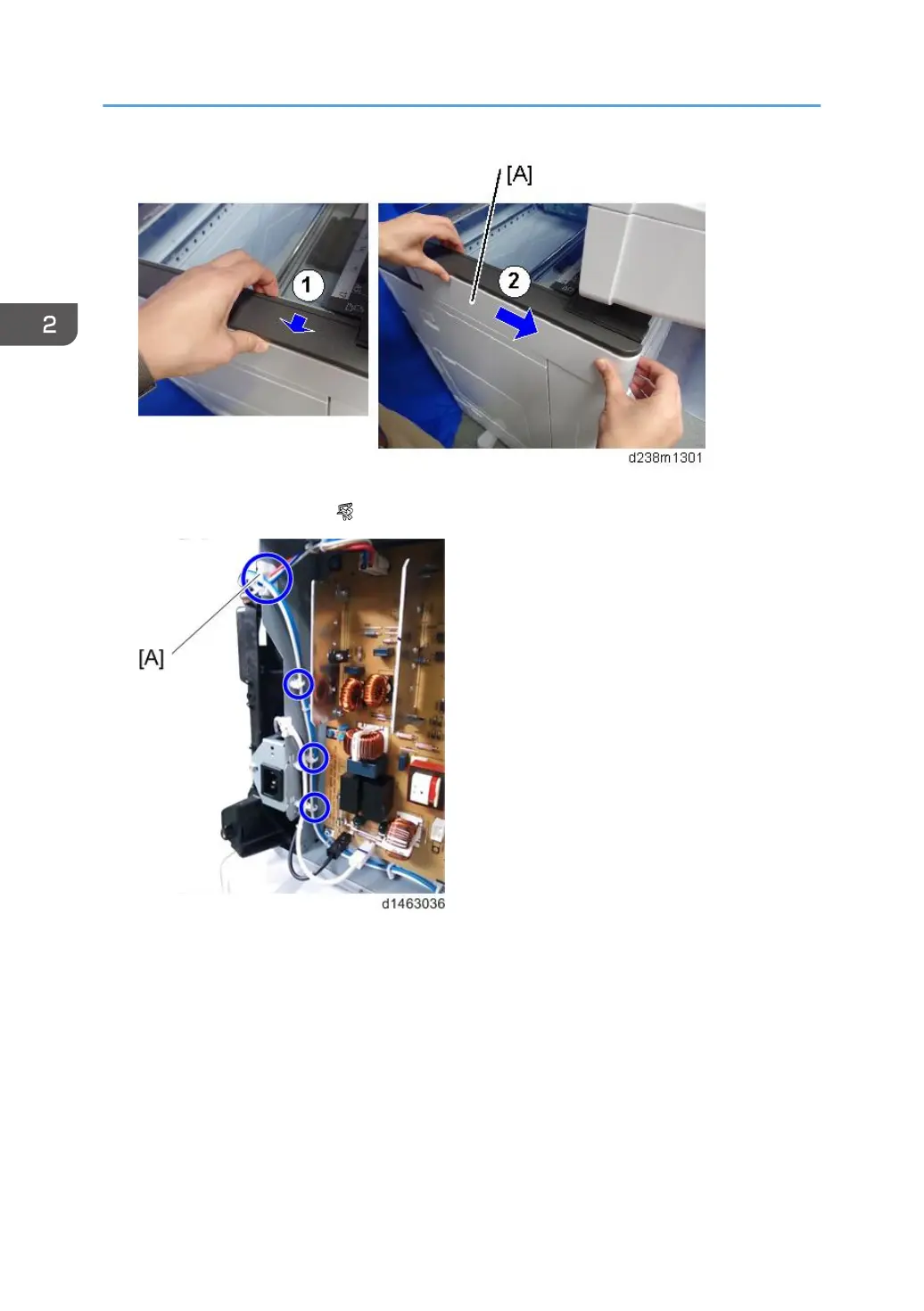

13. Route the harness around the outside of the PSU and pull the harness out of the electrical

box through the hole [A] ( x 4).

2. Installation

114
