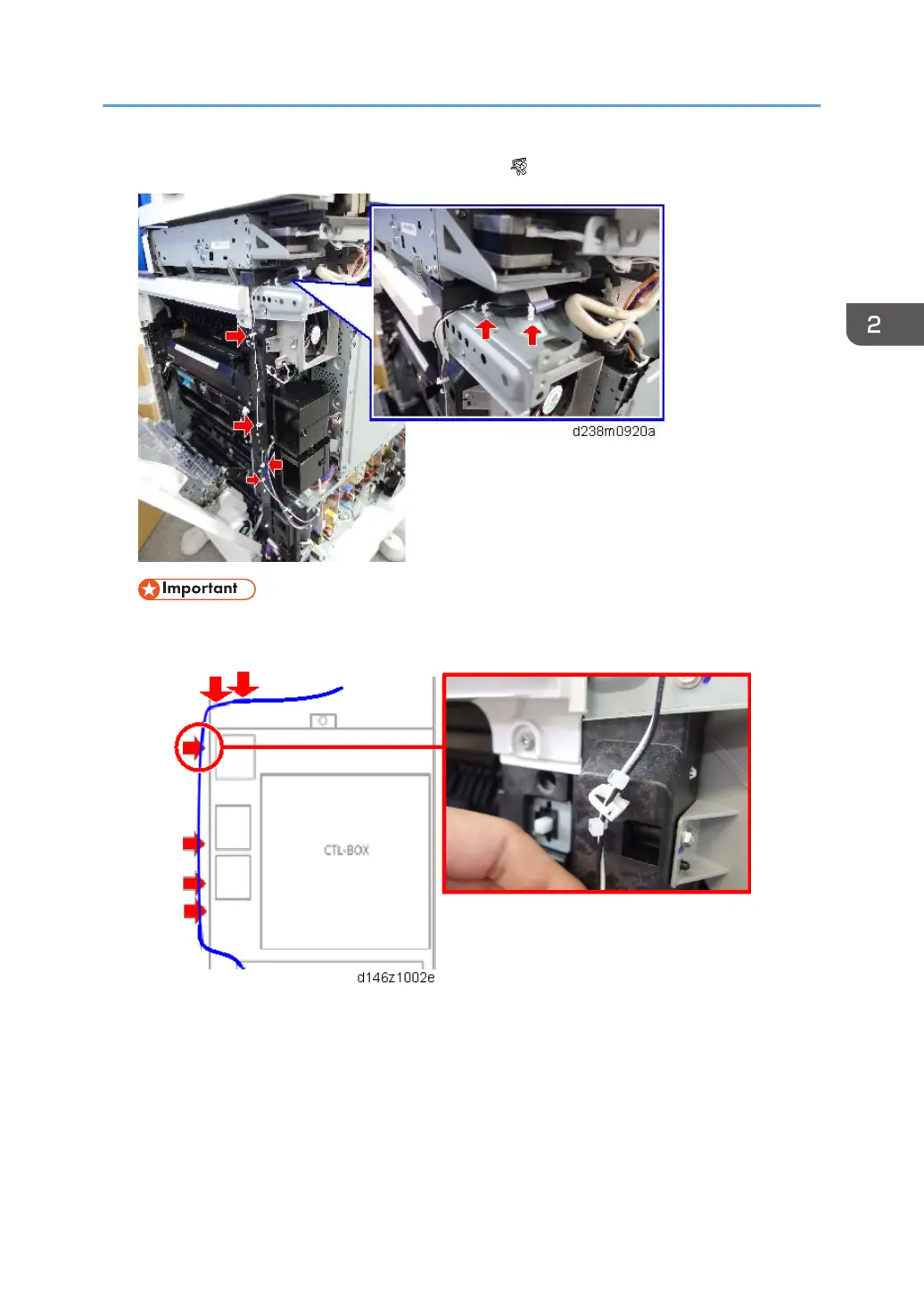

14. Route the harness in the direction of the scanner ( x 6).

• Fasten the clamp between the bindings of the harness at the location indicated by the red

circle.
