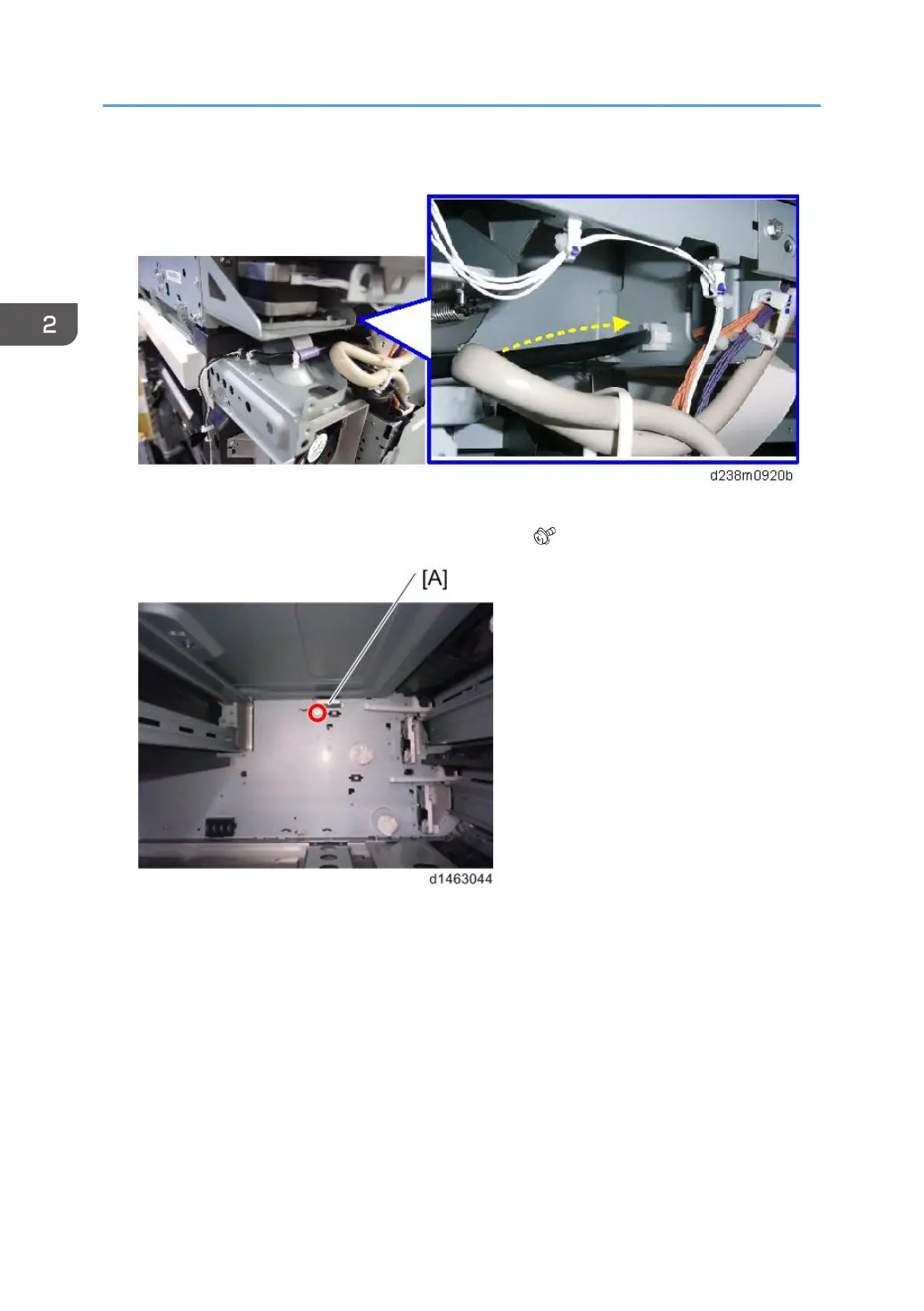

15. Attach the connector to the frame.

16. Remove Feed Trays 1 and 2.

17. The connecter cover located inside the machine [A] ( × 1).

2. Installation

116
